396-028-558-612

Edgeboard Connectors Overview

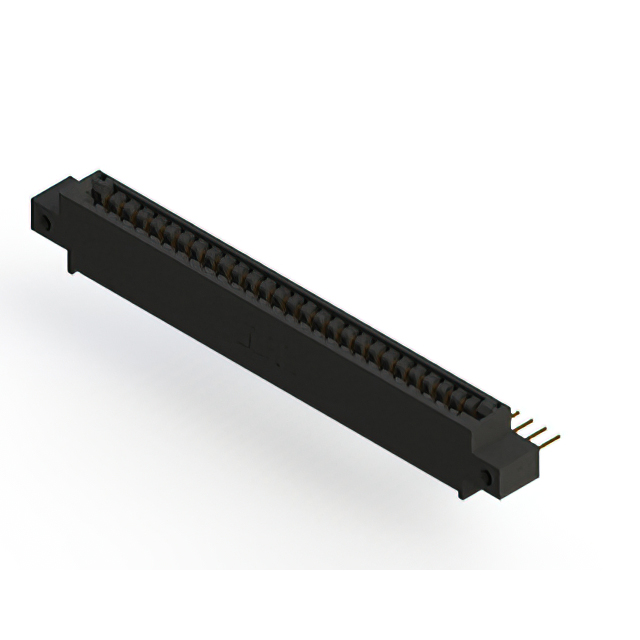

The EDAC Inc. 396-028-558-612 is a standard card edge connector designed for vertical board-to-board or board-to-cable interconnections. This component features a single row of 28 female contacts with a pitch of 3.175 mm (0.125 inches). It is engineered to accommodate printed circuit boards with a thickness of 1.57 mm. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The insulator material is black, and the connector utilizes a solder terminal for secure PCB mounting.

Edgeboard Connectors Feature Summary

• Vertical orientation design for direct board insertion
• Gold-plated contacts for enhanced conductivity
• Single-row configuration with 28 positions

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating, insulation color, and flange options. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the 28-position single-row layout matches the design footprint. Confirm RoHS compliance status through the latest documentation before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, single-edge interface with 28 positions is required. The 3.175 mm pitch and 1.57 mm board thickness compatibility are critical constraints. Consider the gold plating for durability in demanding environments. Verify mechanical stability requirements and mating cycle expectations against the series specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and configurations tailored for diverse industrial applications. The 396 series is known for robust construction suitable for harsh environments, including agricultural and medical sectors where reliability is paramount.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's cross-reference guide for functional equivalents.
