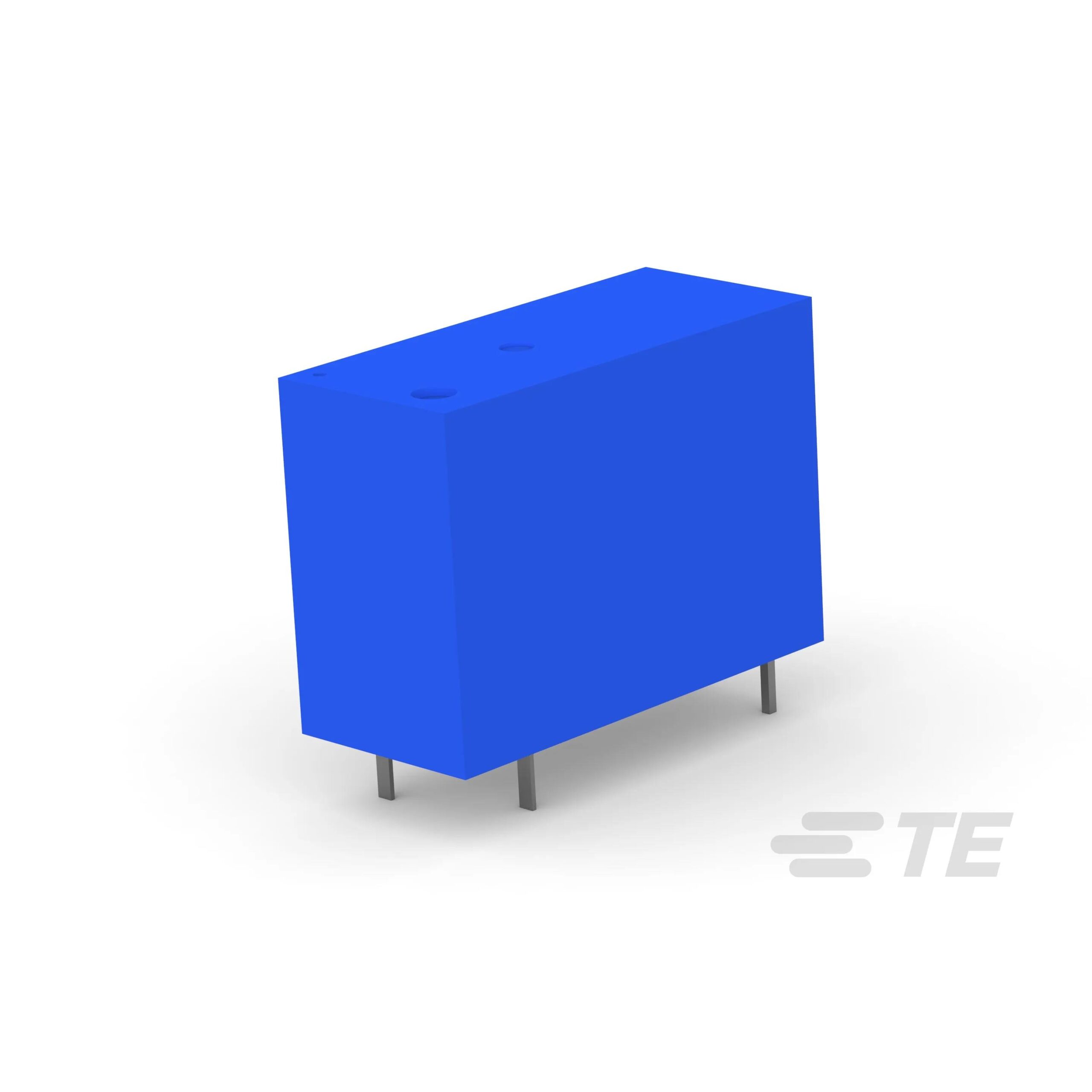

4-1440000-1

4-1440000-1 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is OMI-SH-112LM 394. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 4-1440000-1

• Description：OMI-SH-112LM 394
• Series：OMIH, OEG
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tube
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPST-NO (1 Form A)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：250VAC, 30VDC - Max
• Load - Max Switching：2500VA, 300W
• Coil Current：45 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：Sealed - Fully
• Coil Insulation：-
• Must Operate Voltage：9 VDC
• Must Release Voltage：0.6 VDC
• Operating Temperature：-30°C ~ 70°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CQC, CSA, SEMKO, TUV, UR, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：20 ms
• Release Time：8 ms

Power Relays, Over 2 Amps datasheet and documents for 4-1440000-1
