40.31.8.120.0000

Power Relays, Over 2 Amps Overview

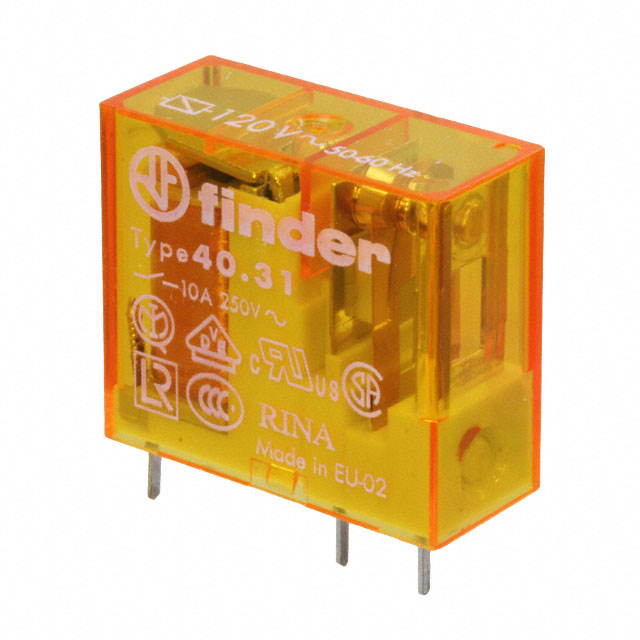

The Finder Relays Inc. model 40.31.8.120.0000 is a miniature PCB/plug-in relay from the 40 Series, featuring an AC coil rated at 120VAC and a SPDT (1 Form C) contact configuration. It supports a maximum switching current of 10A and a voltage up to 400VAC. The unit utilizes cadmium-free silver-nickel (AgNi) contacts and is designed for through-hole or socket mounting. Key electrical parameters include a coil power consumption of 5.3 mW, a mechanical life of 10 million operations, and an electrical life of 100,000 cycles at rated load. It operates within a temperature range of -40°C to +85°C.

Power Relays, Over 2 Amps Feature Summary

• Miniature form factor with 3.5 mm pin pitch suitable for dense PCB layouts
• Cadmium-free AgNi contact material for enhanced environmental compliance
• Socketable design allowing for easy replacement without soldering

Power Relays, Over 2 Amps Applications

• Industrial control panels requiring compact switching solutions
• HVAC systems for fan and compressor control
• Automotive electronics and instrumentation
• Consumer appliances and white goods

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific part number matches the required coil voltage and contact configuration. Confirm that the supplier provides original manufacturer documentation. Ensure the product complies with RoHS directives if applicable to your region. Check for any specific handling instructions regarding moisture sensitivity during storage and assembly processes.

Power Relays, Over 2 Amps Selection Notes

Select this component when space constraints require a miniature relay with a 3.5 mm pin pitch. It is appropriate for applications needing a single changeover contact rated at 10A. Consider the 120VAC coil requirement against available control voltages. Evaluate the need for socketability versus direct PCB mounting based on maintenance requirements.

Power Relays, Over 2 Amps Part Context

This relay belongs to Finder's 40 Series, a line of miniature PCB relays known for their compact size and high switching capacity. The series includes variants with different pin pitches and pole configurations. The 40.31 variant specifically offers a 3.5 mm pitch, distinguishing it from the wider 5 mm pitch models in the same family.

Power Relays, Over 2 Amps Replacement Considerations

Direct substitutes may include other 40 Series models with identical coil voltage and contact ratings but different pin pitches. Verify compatibility with existing PCB footprints or sockets before replacing. Cross-reference with other manufacturers' miniature relays ensuring matching electrical ratings and physical dimensions.
