40.31.8.230.0000

Power Relays, Over 2 Amps Overview

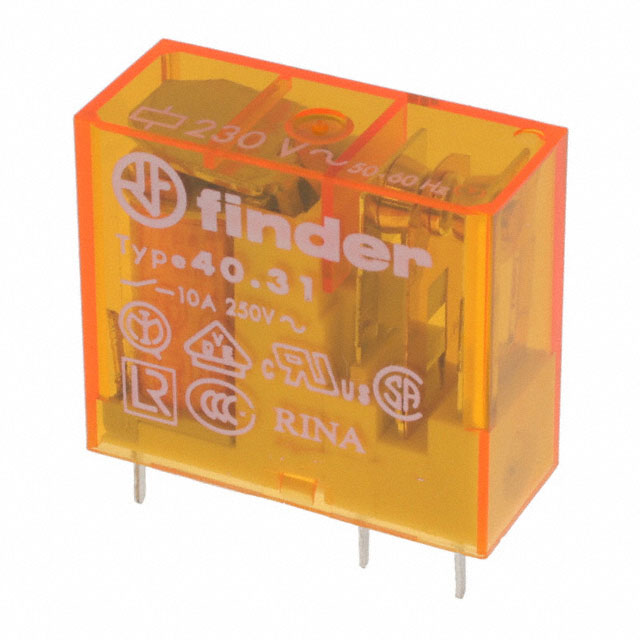

The Finder 40.31.8.230.0000 is a miniature electromagnetic relay from the Series 40 family, designed for PCB and plug-in mounting. It features a 230V AC coil with a resistance of 28kΩ and power consumption of 1.2W. The SPDT contact configuration utilizes silver alloy (AgNi) contacts rated for a switching current of 12A at 400V AC or 10A at 250V AC. The unit supports a switching capacity of 2.5kVA and operates within a temperature range of -40°C to 85°C. Physical dimensions are 29mm in length, 12.4mm in width, and 25mm in height.

Power Relays, Over 2 Amps Feature Summary

• SPDT contact configuration with silver alloy contacts for reliable switching performance
• Miniature form factor suitable for space-constrained PCB and plug-in installations
• Compatible with standard 5.3 mm pin pitch connectors

Power Relays, Over 2 Amps Applications

• General purpose control circuits requiring compact switching solutions
• Industrial automation equipment utilizing standard relay interfaces
• Consumer appliance control modules

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific order matches the exact part number 40.31.8.230.0000 to ensure correct coil voltage and contact configuration. Confirm compatibility with existing PCB layouts regarding the 5.3 mm pin pitch and physical dimensions. Check for any required certifications such as RoHS compliance relevant to your region. Ensure handling procedures protect the electromagnetic mechanism during installation.

Power Relays, Over 2 Amps Selection Notes

Select this component when a 230V AC coil is required for direct mains-compatible control logic. The SPDT configuration provides one normally open and one normally closed circuit, offering flexibility for signal inversion or dual-state control. Consider the 12A switching rating against the load requirements. Verify that the operating temperature range meets environmental conditions. Compare physical footprint constraints against available board space.

Power Relays, Over 2 Amps Part Context

This model belongs to the Finder Series 40 line of miniature relays, which are widely used in industrial and commercial applications. The series offers various coil voltages and contact configurations to suit different control needs. The 40.31.8.230.0000 specifically addresses applications needing high-current switching with a standard AC coil voltage.

Power Relays, Over 2 Amps Replacement Considerations

Direct substitutes must match the 230V AC coil, SPDT contacts, and similar physical dimensions. Verify pin pitch compatibility before replacement. Cross-reference with other manufacturers' miniature relay series for equivalent electrical ratings.
