40.52.8.024.5000

Power Relays, Over 2 Amps Overview

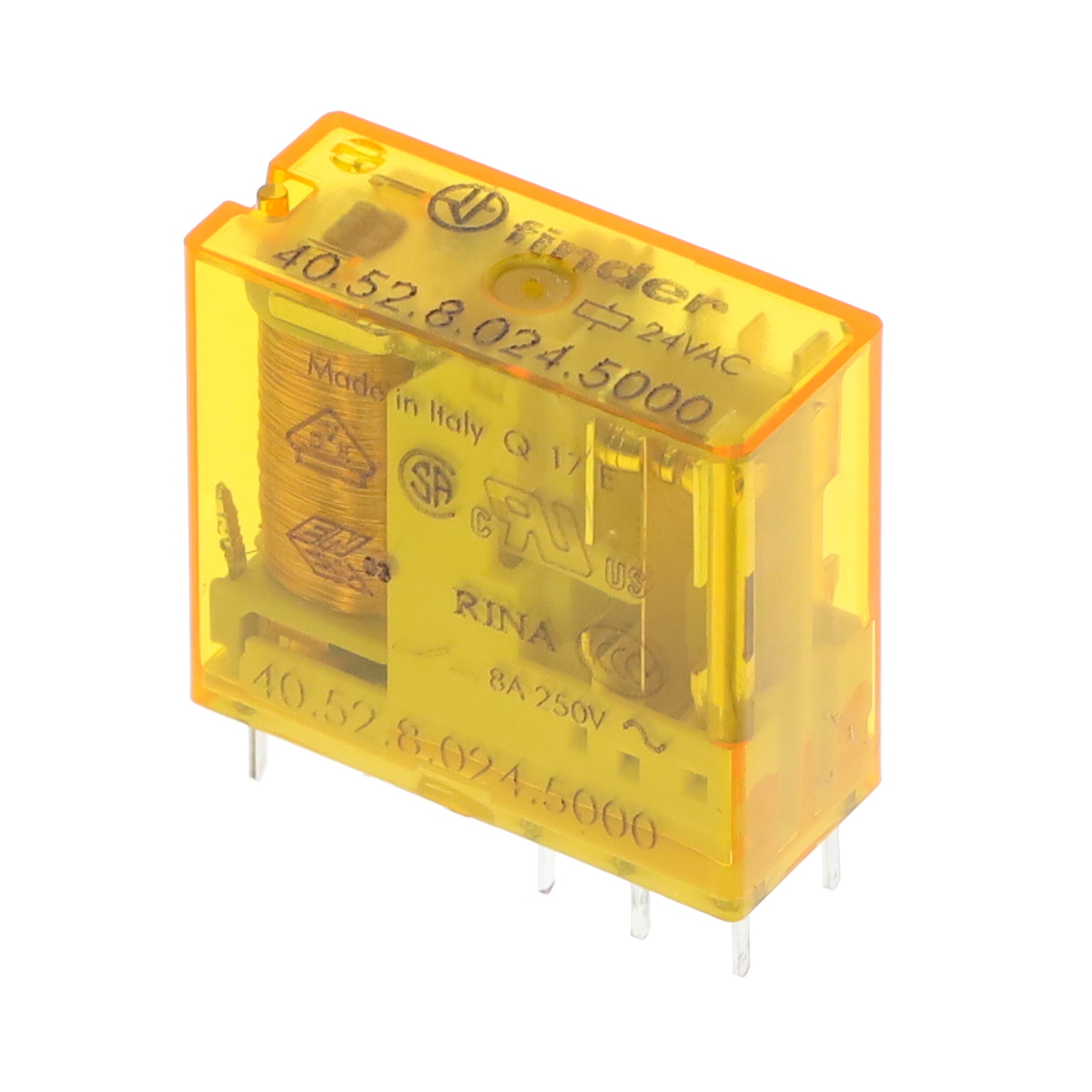

The Finder Relays Inc. model 40.52.8.024.5000 is a general-purpose power relay from the 40 series, designed for through-hole mounting on printed circuit boards. It features a single pole double throw (SPDT) contact configuration with a maximum switching current of 16 A and a maximum switching voltage of 250 VAC. The coil operates at a nominal voltage of 24 VDC with a resistance of approximately 730 Ohms. The unit is sealed against flux protection and certified by UL, CSA, and VDE standards.

Power Relays, Over 2 Amps Feature Summary

• Offers high current carrying capacity suitable for demanding industrial loads
• Provides secure PCB mounting via standard pin termination style
• Includes comprehensive international safety certifications for global deployment

Power Relays, Over 2 Amps Applications

• Industrial control panel signal distribution
• Automation system actuator switching
• HVAC equipment control circuits

Power Relays, Over 2 Amps Procurement Notes

Verify the specific suffix designation to ensure correct coil voltage and contact configuration alignment with design requirements. Confirm that the selected variant matches the required sealing grade and certification marks for the target market. Cross-reference the official datasheet to validate mechanical dimensions and thermal characteristics before finalizing component selection.

Power Relays, Over 2 Amps Selection Notes

Select this relay when higher current handling than standard 6A models is required for SPDT applications. Ensure the PCB layout accommodates the specific pin spacing and housing height. Consider the coil power dissipation and ambient temperature range to maintain reliable operation within the specified -40°C to 85°C working environment limits.

Power Relays, Over 2 Amps Part Context

This component belongs to the Finder 40 series, a line of miniature power relays known for compact dimensions and robust performance. The series supports various coil voltages and contact arrangements, making it versatile for diverse electronic control applications requiring reliable electromechanical switching in space-constrained environments.

Power Relays, Over 2 Amps Replacement Considerations

Direct substitutes include other 40 series variants with identical pinout but different coil voltages or contact ratings. Verify mechanical compatibility and electrical specifications before swapping. No alternative part numbers are explicitly confirmed as direct replacements in the provided documentation.
