40.52.8.120.0000

Power Relays, Over 2 Amps Overview

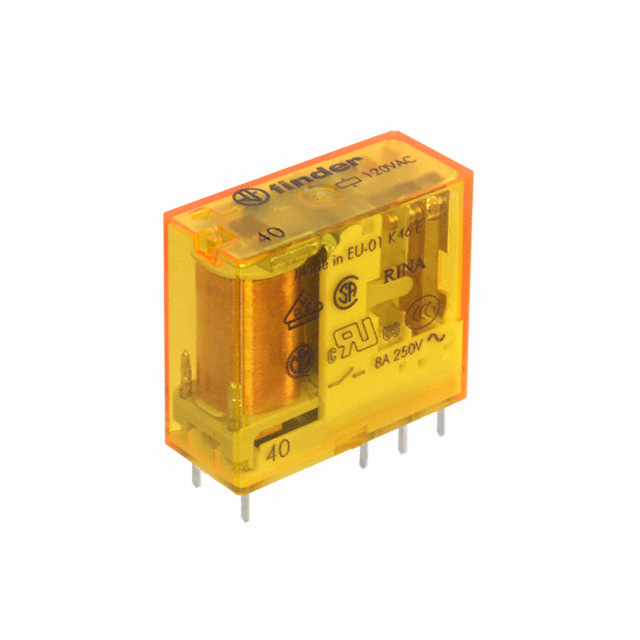

The Finder Relays Inc. 40.52.8.120.0000 is a miniature electromechanical power relay from the 40 series, designed for PCB or plug-in mounting. It features an electromagnetic coil operating at 120 VAC (50Hz/60Hz). The unit contains two changeover contacts (DPDT) rated for a maximum current of 8A. It utilizes cadmium-free AgNi contact materials and offers flux-proof protection (RTII). The relay employs a 5.3 mm pin pitch.

Power Relays, Over 2 Amps Feature Summary

• Miniature electromechanical design suitable for PCB or plug-in installation
• Two changeover (DPDT) contact configuration with 8A maximum rating
• Flux-proof construction providing RTII protection
• Cadmium-free AgNi contact material

Power Relays, Over 2 Amps Applications

• Industrial control panels requiring compact switching solutions
• General purpose automation systems
• Electrical equipment needing reliable AC signal isolation

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific part number matches the required 120VAC coil voltage and DPDT contact configuration. Confirm compatibility with existing PCB layouts or socket bases regarding the 5.3 mm pin pitch. Ensure the application environment supports the specified electrical ratings and mechanical dimensions to guarantee proper integration and performance.

Power Relays, Over 2 Amps Selection Notes

Select this component when a compact, double-pole changeover relay is needed for 120VAC control circuits. The 8A rating suits moderate load applications. Consider the 5.3 mm pin pitch for board spacing requirements. Verify that the flux-proof feature meets environmental standards for the intended installation location.

Power Relays, Over 2 Amps Part Context

This model belongs to the Finder 40 series, which comprises miniature PCB/plug-in relays. The series includes variants with different pole counts and coil voltages. The 40.52 designation specifically indicates a two-pole configuration within this family of components.

Power Relays, Over 2 Amps Replacement Considerations

Direct substitutes must match the 120VAC coil voltage, DPDT contact arrangement, 8A current rating, and 5.3 mm pin pitch. Verify physical footprint compatibility before swapping.
