40.52.8.230.0000

Power Relays, Over 2 Amps Overview

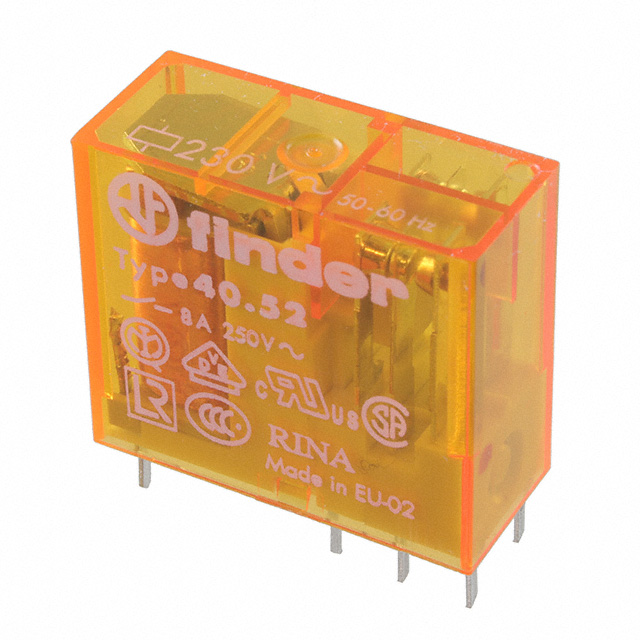

The Finder Relays Inc. model 40.52.8.230.0000 is a miniature electromagnetic power relay from the 40 Series, designed for PCB and plug-in mounting applications. It features a DPDT (Double Pole Double Throw) contact configuration with two Form C contacts. The device operates with a 230V AC coil voltage and supports a maximum switching current of 8A. Constructed with cadmium-free silver-nickel (AgNi) contacts, it ensures reliable performance in general-purpose industrial environments.

Power Relays, Over 2 Amps Feature Summary

• Features a double pole double throw (DPDT) contact arrangement providing two independent switching circuits within a single compact unit.
• Utilizes a 230V AC coil design suitable for direct connection to standard alternating current control systems without additional rectification.
• Incorporates cadmium-free silver-nickel contact materials to maintain electrical conductivity and reduce environmental impact while ensuring durability.

Power Relays, Over 2 Amps Applications

• Industrial automation control panels requiring multiple circuit isolation
• HVAC system logic controllers managing compressor and fan stages
• Machine tool interfaces for actuator and solenoid valve switching

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific order matches the 40.52.8.230.0000 designation to ensure the correct 230V AC coil voltage and DPDT contact configuration are received. Confirm compatibility with standard Finder socket bases if plug-in installation is required. Check datasheet specifications for thermal derating requirements at elevated ambient temperatures to guarantee long-term operational reliability.

Power Relays, Over 2 Amps Selection Notes

Select this component when a dual-circuit switching solution is needed for high-voltage AC control lines. The 8A rating accommodates moderate loads typical in industrial signaling and small motor control. Ensure the available control space supports the physical dimensions of the 40 Series form factor and that the 230V AC coil aligns with the existing control transformer or power supply infrastructure.

Power Relays, Over 2 Amps Part Context

This relay belongs to the Finder 40 Series, a line of miniature PCB and plug-in relays known for their compact footprint and robust mechanical endurance. The series is widely utilized in European and global industrial standards, offering various coil voltages and contact configurations to suit diverse control panel architectures and safety certification requirements.

Power Relays, Over 2 Amps Replacement Considerations

Direct substitutes include other 40 Series variants with identical DPDT contact layouts but differing coil voltages, such as 40.52.7.024.0000 for DC applications. Cross-brand replacements require matching the 8A switching capacity, DPDT topology, and overall envelope dimensions to fit existing PCB footprints or socket mounts without modification.
