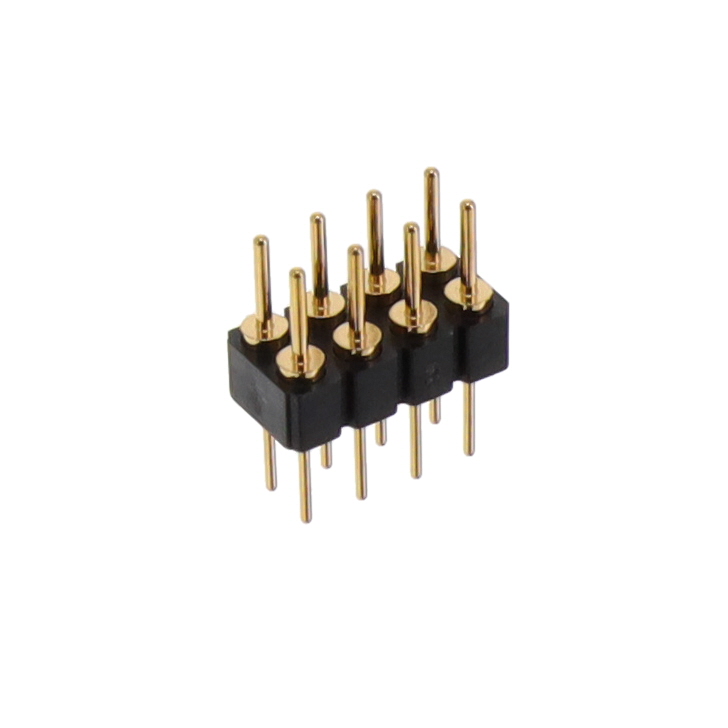

450-10-208-00-001000

$15.16

Description：CONN HEADER VERT 8POS 2.54MM
Series：450
Mfr：Mill-Max Manufacturing Corp.
Package：Tube

SKU:1521b638b810 Category: Headers, Male Pins Brand: Mill-Max Manufacturing Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

450-10-208-00-001000 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Mill-Max Manufacturing Corp.. Its product description is CONN HEADER VERT 8POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 450-10-208-00-001000

Description：CONN HEADER VERT 8POS 2.54MM
Series：450
Mfr：Mill-Max Manufacturing Corp.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.166" (4.22mm)
Contact Length - Post：0.156" (3.96mm)
Overall Contact Length：0.477" (12.12mm)
Insulation Height：0.110" (2.79mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Gold
Contact Material：Brass Alloy
Insulation Material：Polycyclohexylenedimethylene Terephthalate (PCT)
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 450-10-208-00-001000

450-10-208-00-001000

Headers, Male Pins Overview

The Mill-Max 450-10-208-00-001000 is a vertical header connector featuring eight positions arranged in a double-row configuration. It utilizes a 2.54mm (0.100 inch) pin spacing and supports through-hole mounting for secure PCB attachment. The component employs solder tail termination to ensure reliable electrical connections. Designed for board-to-board applications, it includes an open frame structure without shielding. The unit is packaged in tubes and remains active within the manufacturer's product line.

Headers, Male Pins Feature Summary

Vertical header design with double-row arrangement
Through-hole mounting with solder tail termination
Open frame construction without shielding

Headers, Male Pins Applications

Board-to-board interconnection systems
General electronic circuit assembly
Industrial control module interfaces

Headers, Male Pins Procurement Notes

Verify the specific part number against official Mill-Max documentation to confirm current availability and standard lead times. Ensure that the required pin count and row configuration match the design specifications. Check for any updated environmental compliance certifications prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile vertical header with eight contacts is required. The 2.54mm pitch ensures compatibility with standard DIP packages and ribbon cables. Consider the through-hole mounting requirement and verify that the open frame design meets the mechanical clearance needs of the target enclosure or assembly layout.

Headers, Male Pins Part Context

This part belongs to the Mill-Max 450 series, which specializes in custom and standard pin headers. The series offers various position counts and row configurations for diverse interconnect needs. The 450-10 variant specifically denotes the eight-position double-row format within this established product family.
