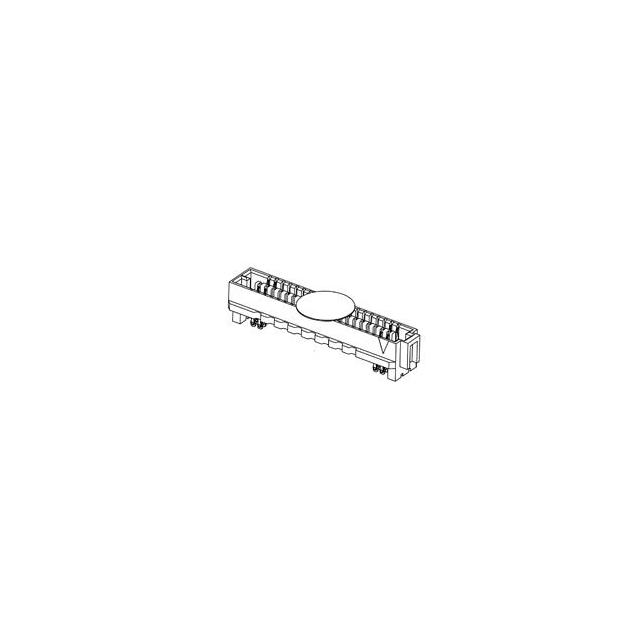

Arrays, Edge Type, Mezzanine (Board To Board) 465572545CUTTAPE product image

465572545CUTTAPE

Description：SEARAY SLIM RECEPTACLE, 80 CIRCU
Series：SEARAY 46557
Mfr：Molex
Package：Box

SKU:8f9ef0be9e88 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

465572545CUTTAPE is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Molex. Its product description is SEARAY SLIM RECEPTACLE, 80 CIRCU. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 465572545CUTTAPE

Description：SEARAY SLIM RECEPTACLE, 80 CIRCU
Series：SEARAY 46557
Mfr：Molex
Package：Box
Connector Type：High Density Array, Female
Number of Positions：80
Pitch：0.050" (1.27mm)
Number of Rows：4
Mounting Type：Surface Mount
Features：Board Guide, Pick and Place
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：10mm, 10.5mm, 11mm, 11.5mm, 12.5mm, 13mm, 15mm
Height Above Board：0.317" (8.05mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 465572545CUTTAPE
