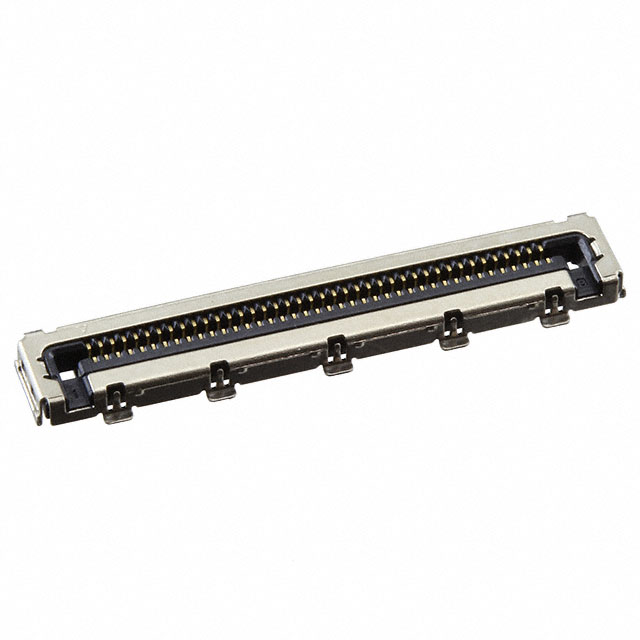

5010834010

5010834010 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 40POS 0.016 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 5010834010

• Description：CONN RCPT 40POS 0.016 GOLD SMD
• Series：501083
• Mfr：Molex
• Package：Tape & Reel (TR)
• Connector Type：Receptacle
• Contact Type：Center Strip Contact
• Style：Board to Cable/Wire
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.016" (0.40mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Detent Lock
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：8.00µin (0.203µm)
• Insulation Color：Black
• Insulation Height：0.049" (1.25mm)
• Contact Length - Post：-
• Operating Temperature：-30°C ~ 75°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Gold
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Shielded, Solder Retention
• Current Rating (Amps)：0.2A per Contact
• Voltage Rating：30V

Headers, Receptacles, Female Sockets datasheet and documents for 5010834010
