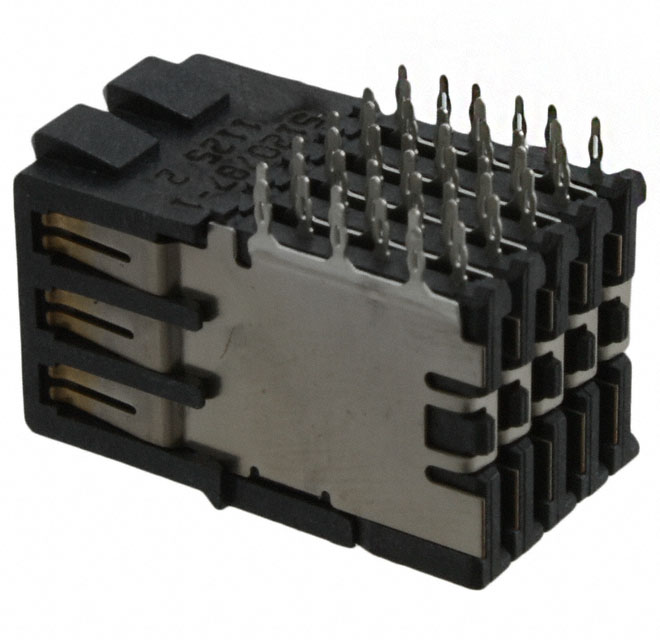

5120787-1

5120787-1 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN RCPT DUAL BEAM 30POS PCB. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for 5120787-1

• Description：CONN RCPT DUAL BEAM 30POS PCB
• Series：Z-PACK HS3
• Mfr：TE Connectivity AMP Connectors
• Package：Tube
• Connector Usage：Backplane
• Connector Type：Receptacle, Female Sockets
• Connector Style：Dual Beam, Center
• Number of Positions：30
• Number of Positions Loaded：All
• Pitch：0.098" (2.50mm)
• Number of Rows：6
• Number of Columns：5
• Mounting Type：Through Hole, Right Angle
• Termination：Press-Fit
• Contact Layout, Typical：-
• Features：-
• Contact Finish：Gold
• Contact Finish Thickness：30.0µin (0.76µm)
• Color：-

Specialized Backplane Connectors datasheet and documents for 5120787-1
