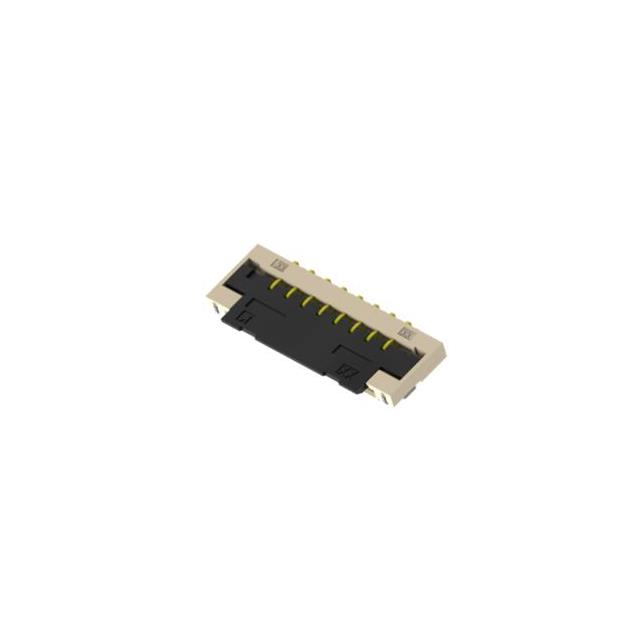

52507-0080N-001

52507-0080N-001 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Aces Connectors. Its product description is 1.0MM PITCH 8P EASY-ON FPC CONN. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 52507-0080N-001

• Description：1.0MM PITCH 8P EASY-ON FPC CONN
• Series：Easy-On 52507
• Mfr：Aces Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：8
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.039" (1.00mm)
• Locking Feature：Flip Lock
• Cable End Type：Tapered
• Contact Material：Copper Alloy
• Contact Finish：Tin
• Housing Material：Thermoplastic
• Actuator Material：Thermoplastic
• Features：Solder Retention
• Voltage Rating：-
• Operating Temperature：-
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 52507-0080N-001
