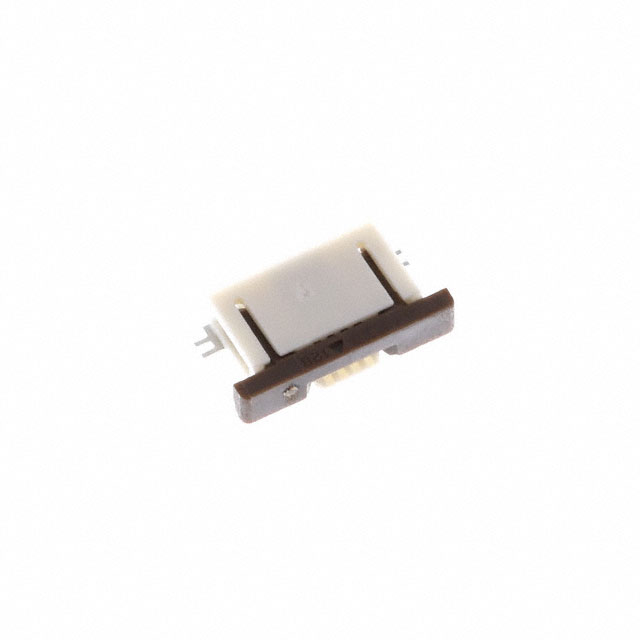

527460471

527460471 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC BOTTOM 4POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 527460471

• Description：CONN FFC BOTTOM 4POS 0.5MM R/A
• Series：Easy-On 52746
• Mfr：Molex
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：4
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.079" (2.00mm)
• Locking Feature：Slide Lock
• Cable End Type：Straight, Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Polyamide (PA46), Nylon 4/6, Glass Filled
• Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-20°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 527460471
