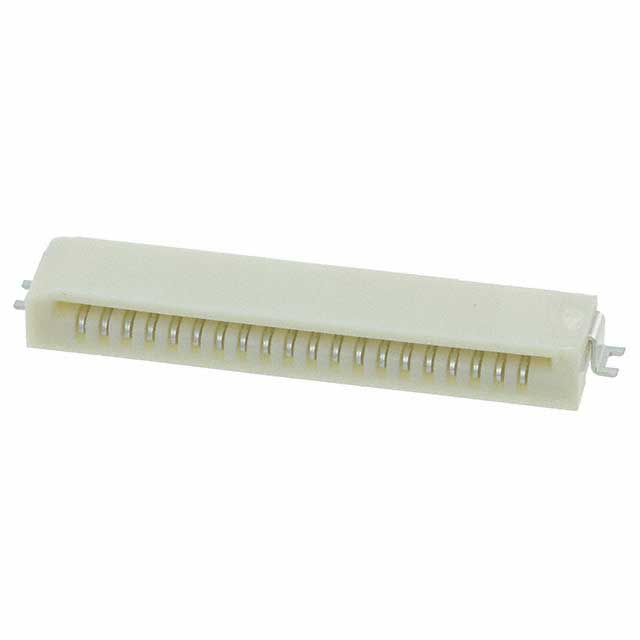

FFC, FPC (Flat Flexible) Connector Assemblies 528522070 product image

528522070

$1.08

Description：CONN FFC FPC BOTTOM 20POS 1MM RA
Series：Easy-On 52852
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:52002cf46c06 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

528522070 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC FPC BOTTOM 20POS 1MM RA. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 528522070

Description：CONN FFC FPC BOTTOM 20POS 1MM RA
Series：Easy-On 52852
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：20
Pitch：0.039" (1.00mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.122" (3.10mm)
Locking Feature：-
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyphenylene Sulfide (PPS)
Actuator Material：-
Features：Solder Retention
Voltage Rating：50V
Operating Temperature：-20°C ~ 80°C
Material Flammability Rating：UL94 V-0
