543935182

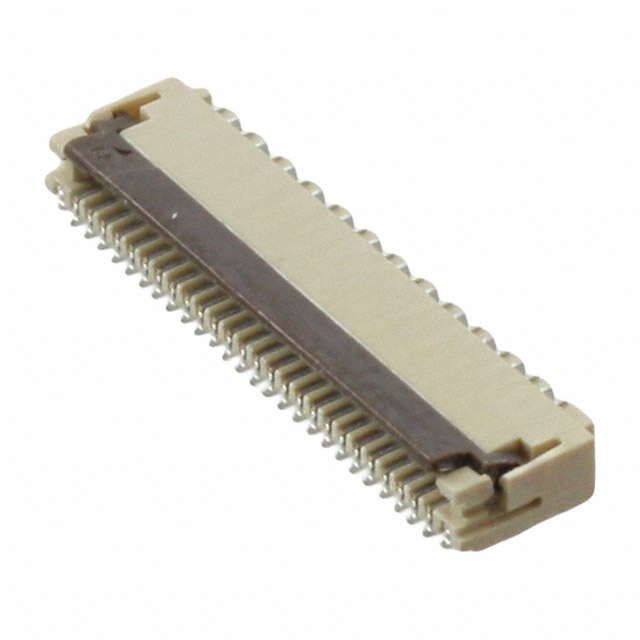

543935182 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC BOTTOM 51POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 543935182

• Description：CONN FPC BOTTOM 51POS 0.3MM R/A
• Series：Easy-On 54393
• Mfr：Molex
• Package：Tape & Reel (TR)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Bottom
• Number of Positions：51
• Pitch：0.012" (0.30mm)
• Termination：Solder
• FFC, FCB Thickness：0.20mm
• Height Above Board：0.077" (1.95mm)
• Locking Feature：Flip Lock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Tin Bismuth
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：Polyphenylene Sulfide (PPS)
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-20°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 543935182
