5977701102F

LED Indication - Discrete Overview

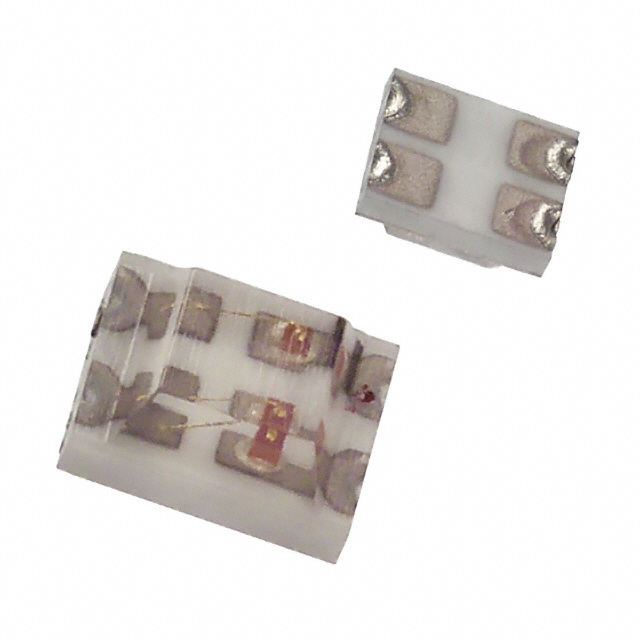

The Dialight 5977701102F is a dual-color discrete LED indicator featuring green and red emitters in a 4-SMD surface-mount package. It emits green light at 565nm and red light at 630nm, with typical forward voltages of 2V for both colors. The component operates at a test current of 20mA and offers a wide viewing angle of 170 degrees. Designed for wave soldering, it utilizes a rectangular lens with a flat top style.

LED Indication - Discrete Feature Summary

• Dual-color configuration providing independent green and red indication within a single compact package
• Wide 170-degree viewing angle ensures high visibility from multiple angles
• Surface-mount construction compatible with standard wave soldering assembly processes

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Control panel signal lights
• Industrial machinery operational displays
• Consumer appliance status feedback

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with the manufacturer or authorized distributors before procurement. Confirm that the 4-SMD package dimensions and pinout align with your PCB footprint requirements. Ensure thermal management capabilities meet your application's operating temperature range specifications.

LED Indication - Discrete Selection Notes

Select this component when space-constrained designs require two distinct color signals in a single surface-mount location. Consider the 170-degree viewing angle for applications requiring broad visibility. Evaluate the 2V forward voltage drop against your circuit's drive capability to ensure proper current limiting resistor selection for both colors.

LED Indication - Discrete Part Context

This part belongs to the Dialight 597 series of microLED discrete indicators. These components are designed for general-purpose electronic signaling where compact size and reliable performance are required. The series typically includes various color combinations and package styles to suit different board layout constraints.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative dual-color SMD LEDs by matching the 4-SMD package outline, pin configuration, and electrical characteristics such as forward voltage and test current.
