599-0440-122F

LED Indication - Discrete Overview

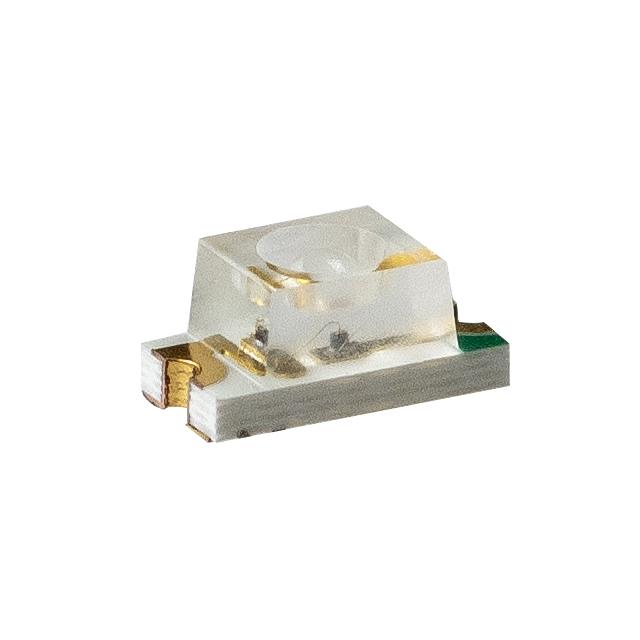

The Dialight 599-0440-122F is a single-color surface-mount LED from the MicroLED series, designed for high-reliability applications. It features a yellow emission with a peak wavelength of 590 nm and utilizes a 1206 (3216 metric) package footprint. The component operates at a forward current of 20 mA with a typical forward voltage of approximately 2.2 V. It includes a water-clear lens to maximize light transmission and is available in cut tape or reel packaging formats.

LED Indication - Discrete Feature Summary

• Compact 1206 surface-mount form factor suitable for space-constrained PCB layouts
• Yellow spectral output optimized for visibility in indicator applications
• Water-clear lens design enhances optical efficiency and brightness

LED Indication - Discrete Applications

• Electronic equipment status indicators
• Control panel signal lights
• Consumer appliance operational feedback

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer's latest datasheet to confirm lens type and binning specifications. Ensure compatibility with standard SMT reflow profiles during assembly planning. Cross-reference the Mouser part number 645-599-0440-122F for accurate distributor identification and technical documentation access.

LED Indication - Discrete Selection Notes

Select this component when a compact yellow indicator is required within a 1206 footprint constraint. Consider the 20 mA drive current requirements for circuit design. Evaluate the 590 nm wavelength against ambient lighting conditions to ensure adequate visibility. Confirm that the water-clear lens meets the desired luminous intensity targets for the specific application environment.

LED Indication - Discrete Part Context

This part belongs to the Dialight 599 series, a line of MicroLED components engineered for dense surface-mount technology integration. The series provides various color options and package sizes to support diverse electronic indication needs. The 599-0440-122F specifically addresses the demand for reliable yellow signaling in modern, miniaturized electronic devices.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
