5990181007F

$0.49

Description：LED GREEN 0805 SMD
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:91ba927ed19c Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5990181007F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is LED GREEN 0805 SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5990181007F

Description：LED GREEN 0805 SMD
Series：599
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Green
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：340mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.40mm x 1.25mm
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：140°
Mounting Type：Surface Mount
Wavelength - Dominant：525nm
Wavelength - Peak：-
Features：-
Package / Case：0805 (2012 Metric)
Supplier Device Package：805
Size / Dimension：2.00mm L x 1.25mm W
Height (Max)：0.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5990181007F

5990181007F

LED Indication - Discrete Overview

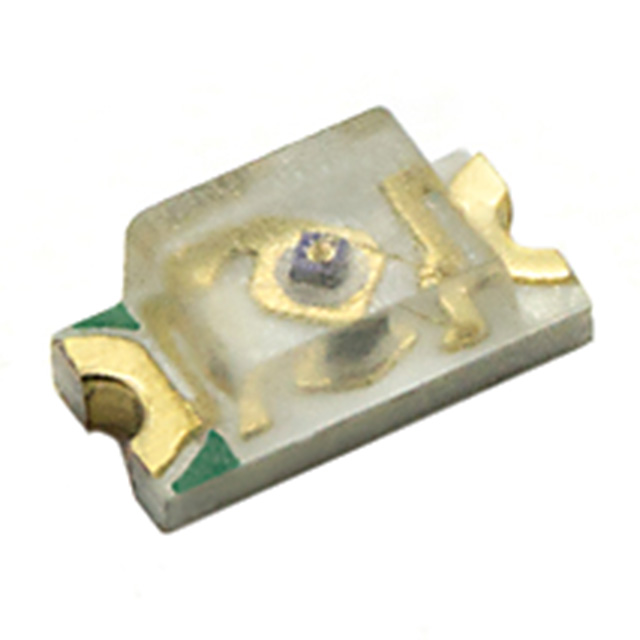

The Dialight 5990181007F is a single-color green LED indicator in the 599 series, designed for surface-mount applications. It features an 0805 (2012 Metric) package with a water-clear lens and a rectangular shape. The component emits light at a peak wavelength of 525nm with a viewing angle of 140 degrees. Electrical characteristics include a forward voltage of 3.2V and a test current of 20mA. It operates within a temperature range of -40°C to +85°C and holds RoHS3 compliance.

LED Indication - Discrete Feature Summary

Surface-mount design suitable for automated assembly processes
High visibility provided by a wide 140-degree viewing angle
Water-clear lens ensures optimal light transmission
Compliant with RoHS3 environmental standards

LED Indication - Discrete Applications

Panel-mounted status indicators
Power supply unit signaling
Consumer electronics device feedback

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to ensure the correct packaging configuration matches your production line requirements. Confirm that the moisture sensitivity level aligns with your facility's floor life management protocols. Cross-reference the datasheet specifications against your circuit design parameters before finalizing procurement orders to ensure compatibility.

LED Indication - Discrete Selection Notes

Select this component when a compact surface-mount solution is required for green indication. The 0805 footprint offers space efficiency compared to through-hole alternatives. Ensure the driving circuit can support the specified 3.2V forward voltage drop. Consider the 140-degree viewing angle for applications requiring broad visibility from multiple positions.

LED Indication - Discrete Part Context

This part belongs to the Dialight 599 Series, which focuses on high-brightness surface-mount LEDs. The series provides various color options and package sizes to meet diverse industrial and commercial lighting needs. The 5990181007F specifically addresses the demand for reliable green indicators in modern electronic assemblies.
