5SGXMA5K3F40I3LG

Field Programmable Gate Array Overview

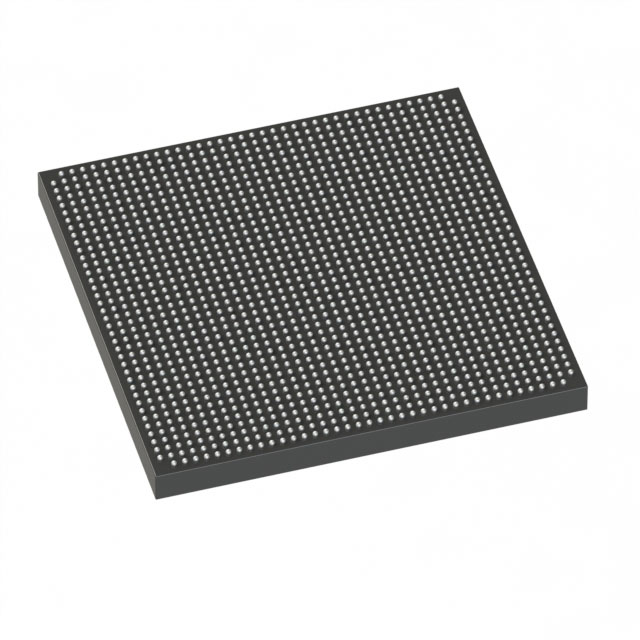

The Altera 5SGXMA5K3F40I3LG is a Stratix V GX Field Programmable Gate Array (FPGA) designed for high-performance digital logic applications. It features 622,000 logic elements and 234,720 Adaptive Logic Modules (ALMs). The device includes 50 Mbit of embedded memory and supports data rates up to 14.1 Gb/s via its transceivers. It operates within an industrial temperature range of -40°C to +85°C and utilizes a 1517-ball FBGA package for surface mount installation.

Field Programmable Gate Array Feature Summary

• High-density programmable logic architecture with extensive embedded memory resources
• High-speed serial transceiver support for advanced communication protocols
• Industrial-grade thermal performance for reliable operation in demanding environments

Field Programmable Gate Array Applications

• Telecommunications infrastructure equipment
• Data center interconnect solutions
• Test and measurement instrumentation

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'I3LG' against official manufacturer documentation to confirm the exact temperature grade and packaging variant. Ensure compatibility with existing board designs regarding the 1517-ball FBGA footprint and pinout configuration before procurement.

Field Programmable Gate Array Selection Notes

Compare this model against other Stratix V GX variants based on required logic element counts and transceiver availability. Evaluate power consumption profiles and thermal management requirements relative to the specific application load and enclosure constraints.

Field Programmable Gate Array Part Context

This component belongs to the Stratix V GX family, which targets high-end networking and storage markets. It represents a mature product line offering robust performance capabilities for complex digital signal processing and control tasks.

Field Programmable Gate Array Replacement Considerations

Consult official replacement guides for equivalent or upgraded devices within the Stratix portfolio. Verify pin-to-pin compatibility and software migration paths if considering alternative part numbers from the same manufacturer.
