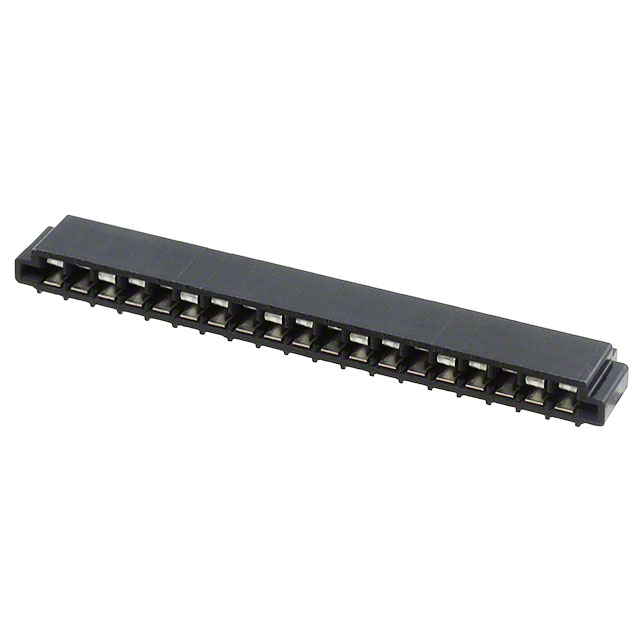

6-520314-9

6-520314-9 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN FFC FPC TOP 19POS 2.54MM RA. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 6-520314-9

• Description：CONN FFC FPC TOP 19POS 2.54MM RA
• Series：Triomate
• Mfr：TE Connectivity AMP Connectors
• Package：Tray
• Flat Flex Type：FFC, FPC
• Mounting Type：Through Hole, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：19
• Pitch：0.100" (2.54mm)
• Termination：Kinked Pin
• FFC, FCB Thickness：0.13mm ~ 0.38mm
• Height Above Board：0.190" (4.83mm)
• Locking Feature：-
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Polyester Thermoplastic, Glass Filled
• Actuator Material：-
• Features：-
• Voltage Rating：250V
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 6-520314-9
