625L3C013M00000

Oscillators Overview

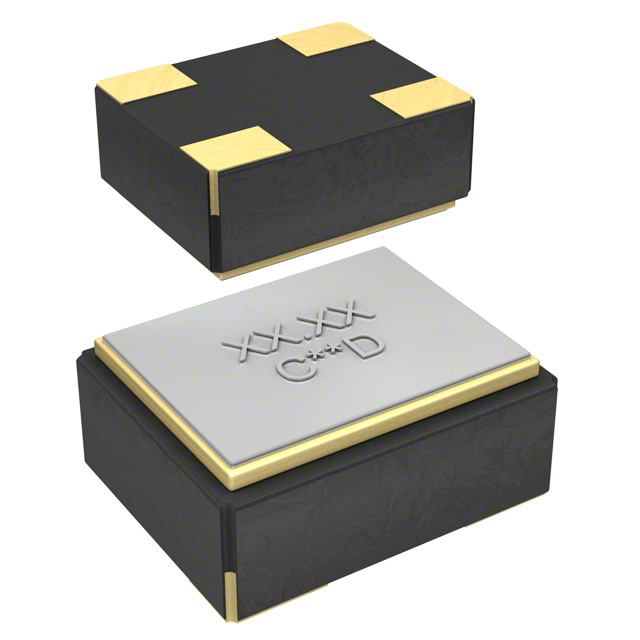

The CTS-Frequency Controls 625L3C013M00000 is a standard CMOS crystal oscillator operating at 13.0 MHz. It functions within a supply voltage range of 2.97 V to 3.63 V, typically utilizing a 3.3 V source. The device features a frequency stability of ±50 ppm and operates across an industrial temperature range of -20°C to +70°C. Packaged in a compact 4-SMD, no-lead form factor measuring 2.50 mm x 2.00 mm with a maximum height of 1.00 mm, it supports surface mount technology. Key electrical characteristics include a maximum supply current of 15 mA during operation and a disabled current of 10 µA.

Oscillators Feature Summary

• Integrated enable/disable functionality for power management control
• CMOS output format compatible with standard digital logic interfaces
• Compact surface-mount package designed for space-constrained PCB layouts

Oscillators Applications

• General-purpose clock signal generation for embedded systems
• Timing reference sources for microcontroller units (MCUs)
• Data communication interface synchronization circuits

Oscillators Procurement Notes

Verify the specific suffix codes against official CTS documentation to confirm exact frequency tolerance and temperature grade specifications. Ensure that the selected variant matches the required supply voltage and output drive strength for the target application circuit. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and lead times prior to finalizing procurement orders.

Oscillators Selection Notes

Select this component when a stable 13 MHz timing reference is required for low-power applications. Consider the ±50 ppm stability requirement against system clock accuracy needs. Evaluate the 4-SMD package dimensions against available board space constraints. Confirm compatibility with the host system's 3.3 V logic levels and ensure the enable pin can be properly controlled by the design architecture.

Oscillators Part Context

This oscillator belongs to the 625 series from CTS-Frequency Controls, which specializes in standard XO devices. The series offers various frequencies and packages tailored for consumer and industrial electronics. The 625L3C013M00000 specifically targets applications requiring reliable CMOS timing signals in a small footprint, serving as a foundational component for digital system clocks.

Oscillators Replacement Considerations

Consult official CTS substitution guides for direct replacements. Verify that any alternative part maintains identical frequency, voltage, package, and stability specifications to ensure circuit compatibility without redesign.
