68001-202HLF

$0.22

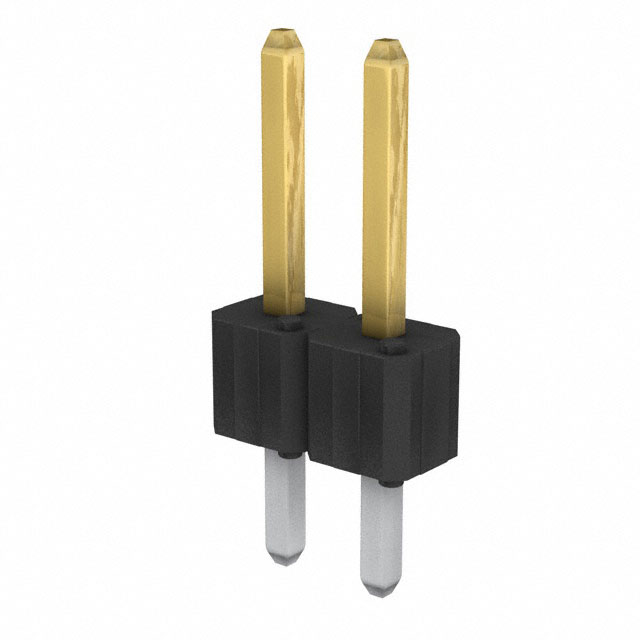

Description：CONN HEADER VERT 2POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:53779ffcd628 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

68001-202HLF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 2POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 68001-202HLF

Description：CONN HEADER VERT 2POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.450" (11.43mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold or Gold, GXT™
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Contact Finish - Post：-
Contact Material：Phosphor Bronze
Insulation Material：-
Features：-
Operating Temperature：-65°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for 68001-202HLF

68001-202HLF

Headers, Male Pins Overview

The Amphenol ICC (FCI) 68001-202HLF is a BergStik® series connector header designed for board-to-board applications. It features two positions with a 2.54mm pitch and utilizes a single row configuration. The component employs through-hole termination with solder pin end types and straight mounting orientation. Male pin contacts are constructed from phosphor bronze and finished with gold plating to ensure reliable conductivity. Rated for 3A current per contact, it operates within a temperature range of -65°C to +125°C. The housing is black thermoplastic rated UL94 V-0.

Headers, Male Pins Feature Summary

Gold-plated phosphor bronze male pins provide durable electrical connectivity
Straight through-hole mounting ensures secure board attachment
UL94 V-0 rated thermoplastic housing offers flame resistance

Headers, Male Pins Applications

Board-to-board interconnections in industrial equipment
Signal routing in communication systems
Connections in lighting control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'HLF' indicates lead-free compliance against project requirements. Confirm that the two-position count matches the design schematic exactly. Check for RoHS status variations between distributors. Ensure the straight header orientation fits the mechanical constraints. Validate the gold plating thickness specifications if high-cycle mating is required.

Headers, Male Pins Selection Notes

Select this component when a low-count, single-row header is needed for signal transmission. The 2.54mm pitch is standard for general-purpose interconnects. Consider the 3A rating for load capacity. The BergStik II series provides compatibility with mating sockets. Evaluate space constraints due to the straight profile.

Headers, Male Pins Part Context

This part belongs to the BergStik II family of unshrouded headers. The series offers various position counts and termination styles. It is widely used in Amphenol's general interconnect portfolio. The 68001 prefix identifies the specific header variant within the product line.
