Headers, Male Pins Overview

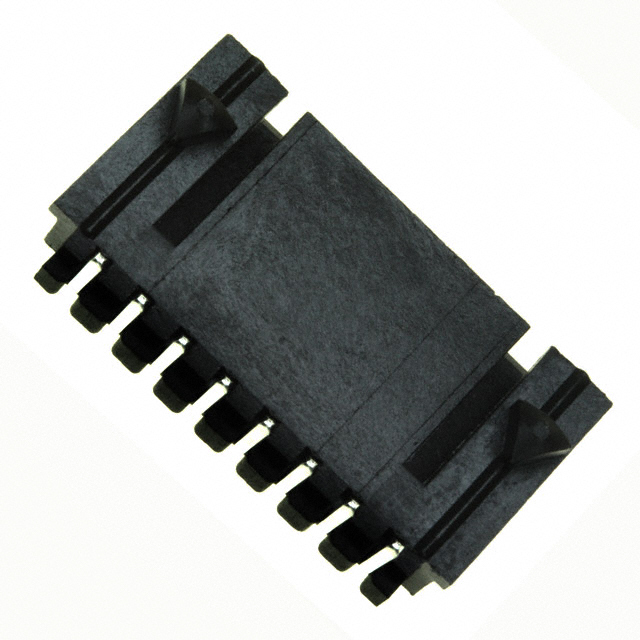

The Molex 70555-0007 is a single-row, right-angle pin header connector from the SL 70555 series. It features an 8-position configuration with a 2.54 mm (0.100 inch) pitch. Designed for through-hole termination on printed circuit boards, this shrouded header includes press-fit plastic pegs to secure the assembly. The contacts are tin-plated to ensure reliable electrical connections.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layouts and wire-to-board connectivity
• Shrouded housing structure provides alignment and protection for contact pins
• Integrated press-fit plastic pegs enhance mechanical stability during installation

Headers, Male Pins Applications

• Through-hole mounting on electronic control boards
• Wire-to-board interconnection systems
• Compact device internal signal routing

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Molex documentation to confirm exact plating thickness and packaging specifications. Ensure compatibility with mating receptacles regarding pitch and row count before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, shrouded through-hole header is required. Confirm that the 2.54 mm pitch matches the PCB footprint and that the 8-position count aligns with the circuit requirements.

Headers, Male Pins Part Context

This connector belongs to the Molex SL series, which is widely used in general electronics for reliable interconnections. The 70555 variant specifically addresses needs for angled insertion and secure mechanical retention via press-fit features.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, 8-position count, right-angle orientation, and shrouded design. Verify that alternative headers support through-hole termination and similar contact plating.
