725-084-541-201

Edgeboard Connectors Overview

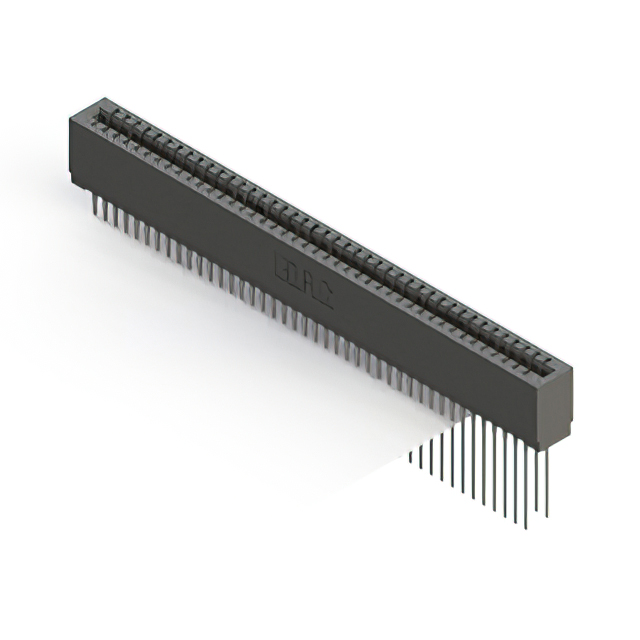

The EDAC Inc. 725-084-541-201 is a dual-edge female card edge connector designed for through-hole mounting. It features 84 positions arranged in two rows with a 0.100-inch (2.54 mm) pitch. The contacts are made of copper alloy with a gold plating finish, ensuring reliable signal transmission. The connector accommodates board thicknesses ranging from 0.054 to 0.070 inches. It utilizes wire wrap termination methods and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified edgeboards
• Gold-plated copper alloy contacts for corrosion resistance
• Wire wrap termination for secure PCB connection

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Computing hardware peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 725 Series Ordering Guide to ensure compatibility with required termination styles and contact finishes. Confirm that the target application supports the specified 0.100-inch pitch and through-hole mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count interface is necessary for dual-sided edgeboard connections. Ensure the design accommodates the vertical mounting orientation and wire wrap assembly process. Validate that the operating environment remains within the specified thermal limits and that the board thickness falls within the accepted tolerance range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 725 series of standard card edge connectors. The series offers various pin counts and pitch options to support diverse electronic interconnection needs. The 725 series is characterized by its robust construction and suitability for general-purpose industrial and commercial applications requiring durable electrical connections.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 725 Series Ordering Guide for direct cross-reference alternatives. Verify that any substitute maintains identical pin count, pitch, and termination type to ensure mechanical and electrical compatibility.
