746-017-545-101

Edgeboard Connectors Overview

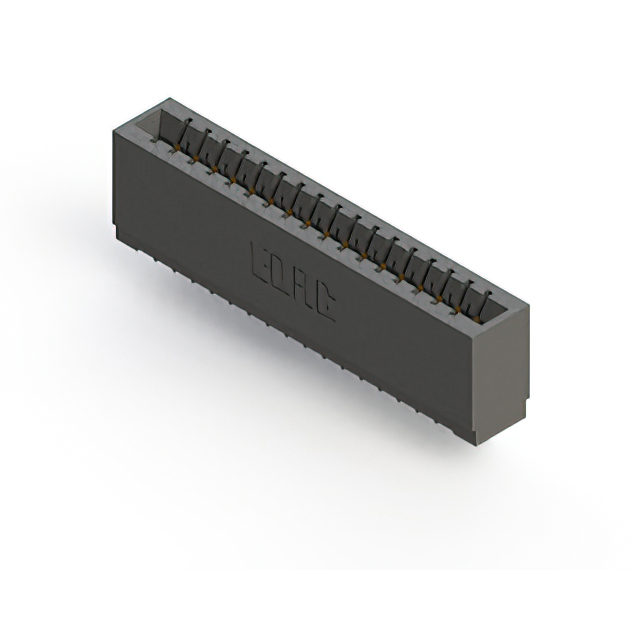

The EDAC Inc. 746-017-545-101 is a single-row card edge connector designed for through-hole mounting. It features 17 positions with a 0.125-inch (3.18mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The contacts are made of copper alloy with a gold plating finish, ensuring reliable signal transmission. Rated for operation from -40°C to +105°C, this female connector utilizes a cantilever contact type for secure insertion.

Edgeboard Connectors Feature Summary

• Single-sided female configuration for standard card edge applications
• Gold-plated cantilever contacts for durable connection integrity
• Through-hole termination method compatible with wire wrap or press-fit processes

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 746 Series Ordering Guide to ensure compatibility with required termination styles and environmental ratings. Confirm that the selected variant matches the intended board thickness and row configuration before finalizing procurement orders to avoid integration issues.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with a 0.125-inch pitch is required for robust mechanical retention. Ensure the application environment falls within the specified temperature range and that the mating card thickness aligns with the connector's acceptance window for optimal contact pressure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 746 series, which provides standard card edge connectors for general-purpose electronic assemblies. The series offers various position counts and configurations to support diverse interconnect needs in commercial and industrial hardware designs requiring reliable edge-mounted connections.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 746 Series cross-reference documentation for verified substitute part numbers. Direct replacements must maintain identical pitch, row count, and termination specifications to ensure mechanical and electrical compatibility without redesigning the host PCB layout.
