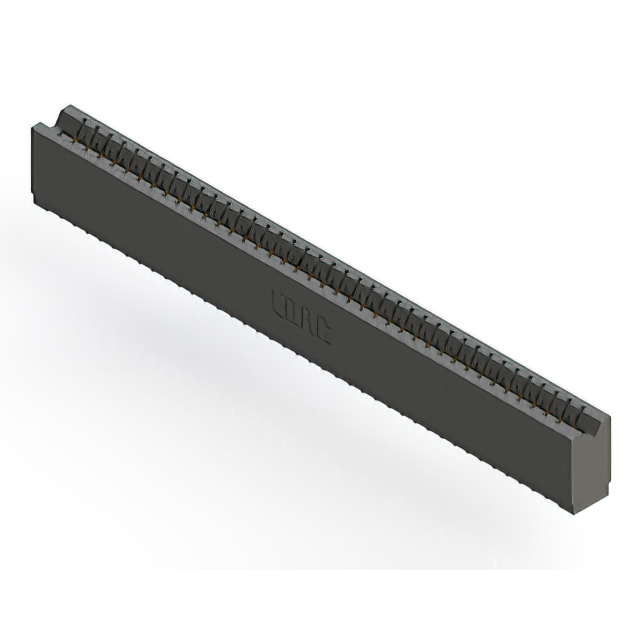

746-039-525-106

$7.83

Description：CONN EDGE SGL FMALE 39POS 0.125
Series：746
Mfr：EDAC Inc.
Package：Bulk

SKU:49617d08a50f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

746-039-525-106 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 39POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 746-039-525-106

Description：CONN EDGE SGL FMALE 39POS 0.125
Series：746
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：39
Number of Positions：39
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Press-Fit
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 746-039-525-106

746-039-525-106

Edgeboard Connectors Overview

The EDAC Inc. 746-039-525-106 is a single-edge female card edge connector designed for through-hole mounting. It features 39 positions with a 0.125-inch (3.18mm) pitch and utilizes gold-plated contacts on a copper alloy substrate. The housing is constructed from black thermoplastic polyester, rated for operation between -40°C and 105°C. This component supports non-specified single-sided cards with thicknesses ranging from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

Single-row female contact configuration for standard card edge applications
Gold-plated surface finish ensures reliable signal transmission
Through-hole termination method provides secure PCB attachment
Thermoplastic polyester insulation offers thermal stability

Edgeboard Connectors Applications

Industrial control system interface connections
Telecommunications equipment backplane integration
Consumer electronics module interconnects
Medical device circuit board assembly

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's current ordering guide to ensure compatibility with required card thickness and termination style. Confirm RoHS compliance status and environmental certifications prior to finalizing procurement orders for regulated markets.

Edgeboard Connectors Selection Notes

Select this part when a single-sided connection is required with a 0.125-inch pitch. Ensure the target PCB design accommodates through-hole mounting and matches the specified card thickness range of 0.054 to 0.070 inches for proper mechanical engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 746 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic assembly needs across multiple industries while maintaining consistent dimensional standards.
