77311-127-16

Headers, Male Pins Overview

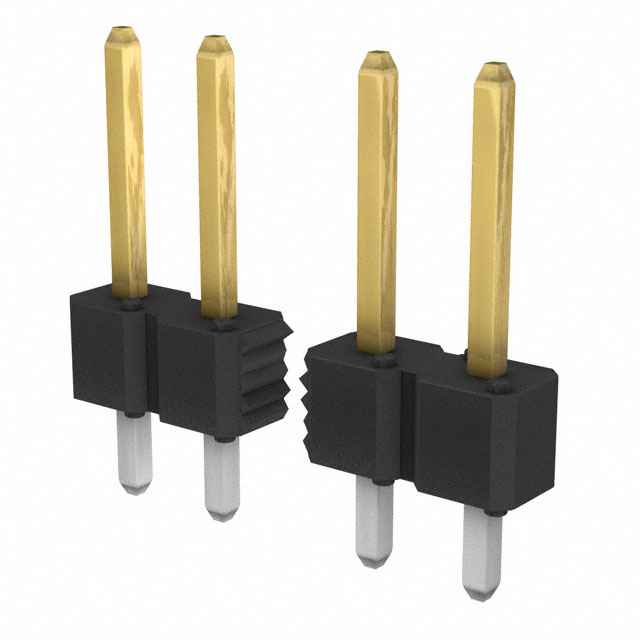

The Amphenol ICC (FCI) 77311-127-16 is a BergStik® board connector featuring 16 contacts in a single row. It utilizes a 0.1 inch (2.54 mm) pitch and employs a male pin header configuration with straight orientation. The component supports through-hole termination for secure PCB mounting. Insulation is constructed from black thermoplastic material rated UL94 V-0. Contact plating consists of gold over nickel to ensure reliable signal transmission.

Headers, Male Pins Feature Summary

• BergStik series design for standardized interconnect solutions
• Male pin header configuration for board-to-board applications
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• UL94 V-0 rated thermoplastic insulation for fire safety

Headers, Male Pins Applications

• Board-to-board interconnections
• General electronic equipment assembly
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm compliance status, as variants exist with different lead-free specifications. Ensure the selected part matches the required RoHS designation for your project constraints. Cross-reference the datasheet revision to confirm current manufacturing status and any potential PCN notifications regarding material changes or obsolescence before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, unshrouded header with a 2.54mm pitch is required. The male pin style is suitable for mating with female receptacles. Consider the straight orientation for standard vertical mounting profiles. Verify that the 16-position count aligns with circuit requirements and that the through-hole termination method fits the PCB fabrication capabilities.

Headers, Male Pins Part Context

This part belongs to the BergStik family of rectangular connectors manufactured by Amphenol ICC (FCI). The series offers various contact counts and configurations to support diverse electronic interconnect needs. The 77311-127-16 specifically addresses applications requiring a compact, single-row male header solution with robust mechanical and electrical performance characteristics.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 16-position, 2.54mm pitch BergStik headers from the same manufacturer. Verify compatibility with mating receptacles before substitution.
