77315-101-18LF

Headers, Male Pins Overview

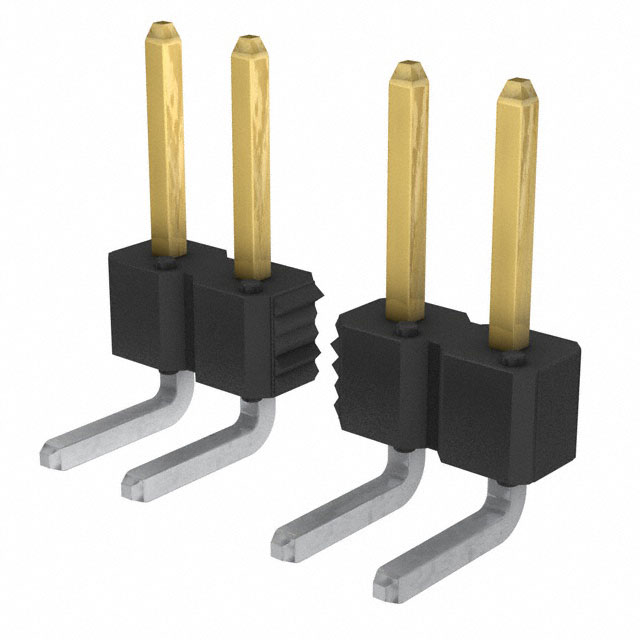

The Amphenol ICC (FCI) 77315-101-18LF is a BergStik® unshrouded header connector designed for board-to-board applications. It features a single row with eighteen positions and a 2.54mm pitch. The component utilizes through-hole right-angle termination and square male pin contacts made of phosphor bronze. Insulation is provided by black thermoplastic material rated UL94 V-0. The mating contact length measures 0.225 inches, while the post length is 0.101 inches. The housing height is 0.094 inches. Contact plating options include gold or GXT™ on the mating surface and tin on the termination posts.

Headers, Male Pins Feature Summary

• BergStik series design offering standardized 2.54mm spacing for reliable interconnection
• Unshrouded configuration allowing flexible mounting density in compact layouts
• Right-angle through-hole termination ensuring secure PCB attachment
• Phosphor bronze contacts with selectable plating for optimized conductivity

Headers, Male Pins Applications

• Board-to-board signal transmission
• General electronic equipment interconnects
• Industrial control system modules

Headers, Male Pins Procurement Notes

Verify the specific contact plating configuration required for your application, as the part number may denote standard tin or optional gold/GXT finishes depending on the exact suffix variant. Confirm that the unshrouded design aligns with your assembly safety and isolation requirements. Ensure the right-angle orientation fits within your mechanical envelope constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, unshrouded header is needed for rigid board connections. The 2.54mm pitch is standard for general-purpose electronics. Consider the right-angle form factor for space-saving vertical transitions. Verify that the 3A current rating per contact meets your circuit load requirements. Check if the unshrouded style is acceptable regarding adjacent component clearance and insulation needs.

Headers, Male Pins Part Context

This connector belongs to the BergStik family of 2.54mm headers produced by Amphenol ICC (FCI). The series provides various position counts and termination styles for diverse electronic assembly needs. The 77315 base number identifies the specific unshrouded header product line within the broader FCI connector portfolio.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include other 77315 variants with different position counts, such as 77315-101-16LF or 77315-101-20LF. Cross-brand replacements require matching the 2.54mm pitch, right-angle through-hole termination, and single-row unshrouded geometry to ensure mechanical and electrical compatibility.
