783775-01

Overview

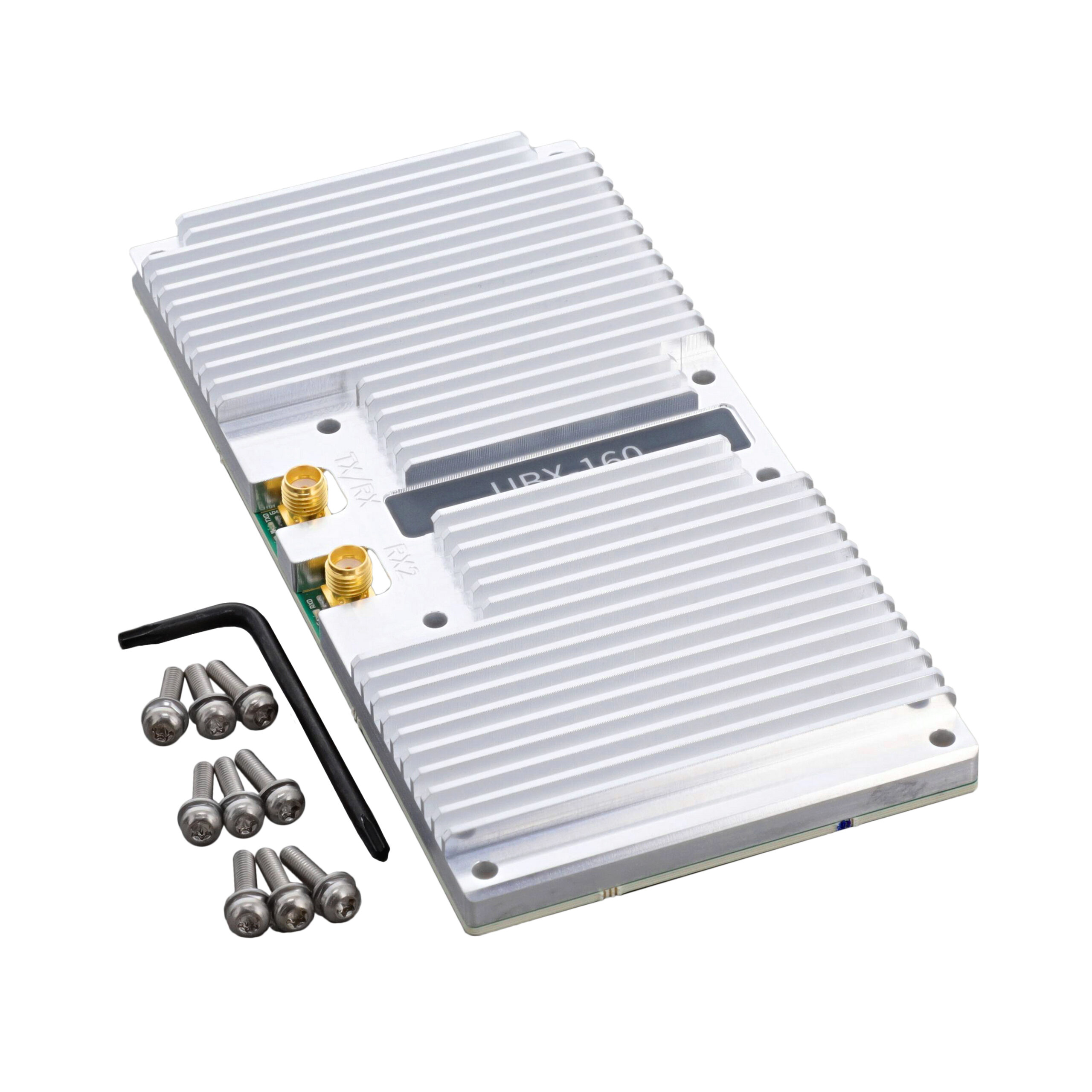

The NI 783775-01 is a UBX-160 software-defined radio daughter card designed for PXI controllers. It functions as a full-duplex wideband transceiver covering a frequency range of 10 MHz to 6 GHz with an instantaneous bandwidth of up to 160 MHz. The module supports coherent and phase-aligned operations across multiple cards, enabling advanced MIMO and direction-of-arrival applications.

Feature Summary

• Full-duplex wideband transceiver capability
• Frequency coverage from 10 MHz to 6 GHz
• Instantaneous bandwidth up to 160 MHz
• Supports coherent multi-card phase alignment

Applications

• MIMO system development
• Direction-of-arrival estimation
• Software-defined radio prototyping
• Wideband signal analysis

Procurement Notes

Verify the specific revision suffix if applicable, as standard documentation refers to the base model. Confirm compatibility with the target PXI chassis controller. Ensure software licenses support the required SDR functionality. Check for any accessory requirements such as mounting hardware or cabling not included in the base unit.

Selection Notes

Select this module when wideband RF capabilities within the 10 MHz to 6 GHz range are required. It is suitable for applications demanding high instantaneous bandwidth and precise phase coherence between multiple channels. Consider this option over narrowband solutions for complex modulation schemes and spatial processing tasks.

Part Context

This component belongs to the NI UBX series of software-defined radio daughter cards. It integrates directly into PXI systems to provide flexible RF front-end capabilities. The module complements NI's modular instrumentation ecosystem by offering programmable RF performance without fixed hardware constraints.
