807-016-442-212

Edgeboard Connectors Overview

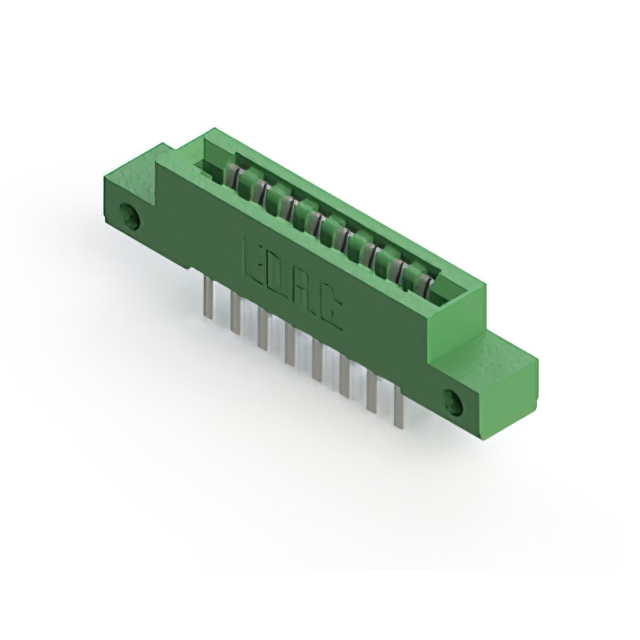

The EDAC Inc. 807-016-442-212 is a standard card edge connector receptacle from the 807 series, designed for high-temperature applications. It features 16 positions with a 3.96 mm pitch and supports dual-edge non-specified card types. The connector accommodates board thicknesses between 1.37 mm and 1.78 mm (0.054" to 0.070"). It utilizes gold-plated copper alloy contacts rated for 5 A current and employs solder pin termination. The housing is constructed from green thermoplastic material, ensuring vertical panel mount installation.

Edgeboard Connectors Feature Summary

• High-temperature design suitable for demanding operational environments
• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable signal transmission
• Vertical panel mount style for stable structural integration

Edgeboard Connectors Applications

• Medical interconnect solutions requiring durable connections
• Agricultural technology equipment operating in harsh conditions
• Industrial control systems utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified suppliers. Confirm RoHS compliance status and specific packaging details prior to purchase. Ensure that the procurement channel provides valid traceability documentation. Check for any regional distribution restrictions that may affect availability. Validate that the received part matches the exact 807 series designation and contact plating specifications.

Edgeboard Connectors Selection Notes

Select this connector when a high-temperature rating and dual-edge compatibility are required. Ensure the target PCB thickness falls within the 1.37 mm to 1.78 mm range for proper engagement. Verify that the application environment does not exceed the specified thermal limits. Confirm that the 16-position count aligns with the circuit design requirements. Consider the vertical panel mount orientation during mechanical layout planning.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 series of high-temperature card edge connectors. The series is engineered for reliability in medical and agricultural sectors. It offers robust performance under elevated temperatures compared to standard industrial connectors. The design emphasizes durability and consistent electrical contact stability.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 807 series variants with matching position counts and pitch dimensions. Verify that alternative parts maintain the same dual-edge female configuration and gold plating. Ensure replacement components support the identical board thickness tolerance and vertical mounting style.
