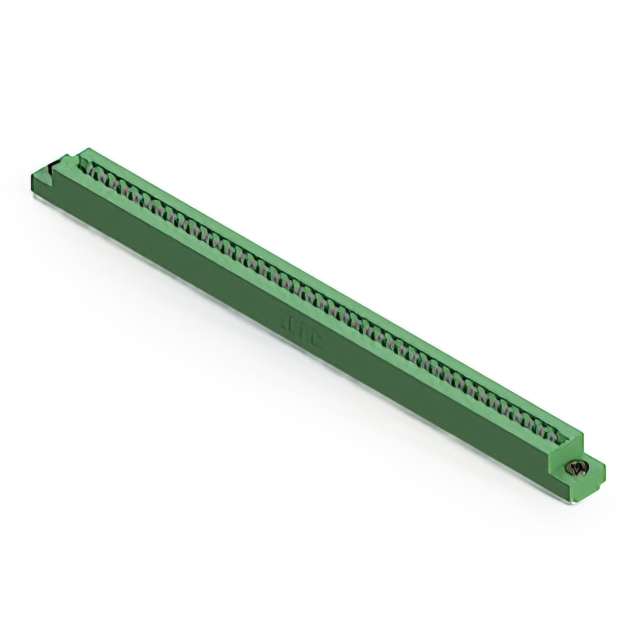

807-041-454-103

$222.67

Description：CONN EDGE DUAL FMALE 82POS 0.156
Series：807
Mfr：EDAC Inc.
Package：Bulk

SKU:4f9ac636e7cf Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

807-041-454-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 82POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 807-041-454-103

Description：CONN EDGE DUAL FMALE 82POS 0.156
Series：807
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：41
Number of Positions：82
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 807-041-454-103

807-041-454-103

Edgeboard Connectors Overview

The EDAC Inc. 807-041-454-103 is a standard card edge connector receptacle from the 807 High Temp series. It features 82 positions with a 3.96 mm pitch and supports dual-edge female contacts. Designed for non-specified card types, it accommodates board thicknesses between 1.37 mm and 1.78 mm. The unit utilizes tin-plated copper alloy contacts housed in green diallyl phthalate (DAP). Rated for 5 A current, it operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure mating
High-temperature resistant DAP housing material
Tin-plated copper alloy contacts for reliable conductivity

Edgeboard Connectors Applications

High-temperature electronic interconnect systems
Industrial control panel connections
Aerospace and defense circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet to confirm the contact finish, as sources indicate both tin and gold plating options for this part number. Ensure the selected variant matches the required environmental rating and current capacity for the target application before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a high-temperature rated connector with a 3.96 mm pitch is required. The dual-edge design suits applications needing robust mechanical retention. Confirm that the housing material and contact finish align with the specific electrical and environmental constraints of the system design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series is engineered for demanding environments where standard connectors may fail. The 807-041-454-103 specifically addresses needs for higher position counts with durable materials.
