807-086-460-204

Edgeboard Connectors Overview

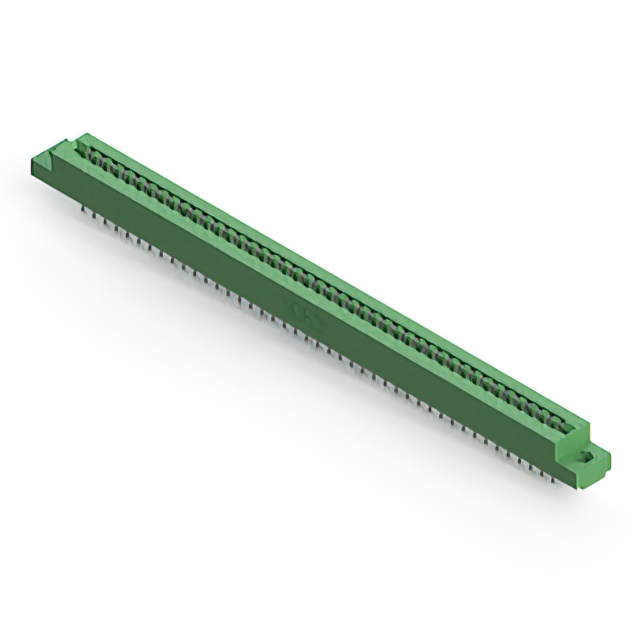

The EDAC Inc. 807-086-460-204 is a standard card edge connector designed for high-temperature applications. It features an 86-position dual female configuration with a 3.96 mm pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester housing. It supports PCB mount installation and offers a current rating of 5 A per contact. The unit operates within a temperature range of -40°C to +105°C, providing an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual female receptacle design accommodating 86 positions
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester housing material for durability
• High-temperature capability suitable for demanding environments

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet for the 807-086-460-204 to confirm exact dimensional tolerances and mating force requirements. Ensure that the receiving board thickness aligns with the connector's specified acceptance range. Confirm compliance with relevant RoHS directives before final integration into the assembly process.

Edgeboard Connectors Selection Notes

Select this component when a high-density 86-position connection is required in space-constrained panels. The dual-row layout maximizes I/O density while maintaining a standard 3.96 mm pitch. Consider the gold plating for corrosion resistance in harsh industrial or medical settings where long-term reliability is critical.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 series, which specializes in high-temperature card edge connectors. The series is engineered for robust performance in challenging environments, including medical and agricultural technologies. The 807 series provides various position counts and mounting styles to suit diverse system integration needs.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Cross-reference pinout configurations and mechanical dimensions to ensure compatibility with existing panel cutouts and mating cards.
