826937-3

Headers, Male Pins Overview

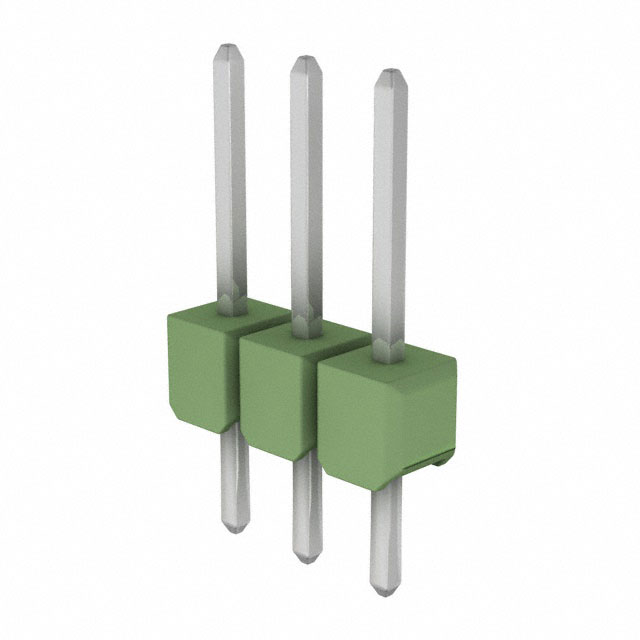

The TE Connectivity AMP Connectors part number 826937-3 is a single-row, three-position header connector from the AMPMODU Mod II series. It features a 0.100-inch (2.54mm) pitch and is designed for through-hole termination. The contacts are gold-plated copper alloy pins with a tin plating thickness of 78.7 microinches (2.00 micrometers). The housing is constructed from polybutylene terephthalate (PBT), providing UL94 V-0 flammability rating. This component supports board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Single-row design with three positions for compact circuit integration
• Through-hole mounting with push-pull locking mechanism for secure attachment
• Tin-plated contacts ensure reliable electrical conductivity and corrosion resistance
• UL94 V-0 rated PBT insulation material for enhanced fire safety

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Wire-to-board connections requiring vertical orientation
• General-purpose industrial control systems
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific contact plating configuration against official datasheets, as some sources indicate tin while others may imply different finishes. Confirm that the 3-position variant matches the required mechanical footprint. Ensure compliance with RoHS directives if applicable to your supply chain requirements. Cross-reference the manufacturer's latest documentation to avoid discrepancies in pin count or spacing specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header is needed for vertical PCB mounting. The 2.54mm pitch is standard for general electronics, ensuring compatibility with common mating connectors. Consider the through-hole requirement for soldering processes. Evaluate the thermal and current ratings against the application's operational demands before finalizing the selection.

Headers, Male Pins Part Context

This connector belongs to the AMPMODU Mod II family, a widely used line of rectangular connectors known for reliability. The 826937-3 specifically denotes the 3-position variant within this series. It is distinct from other row counts or pitch variations in the same product line, offering a standardized solution for multi-pin interconnect needs in various electronic devices.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 3-position, 2.54mm pitch headers from TE Connectivity or equivalent manufacturers. Ensure the replacement maintains the same through-hole termination style and vertical orientation. Verify that the mating connector interface matches the pin dimensions and locking mechanism to guarantee proper assembly and electrical performance.
