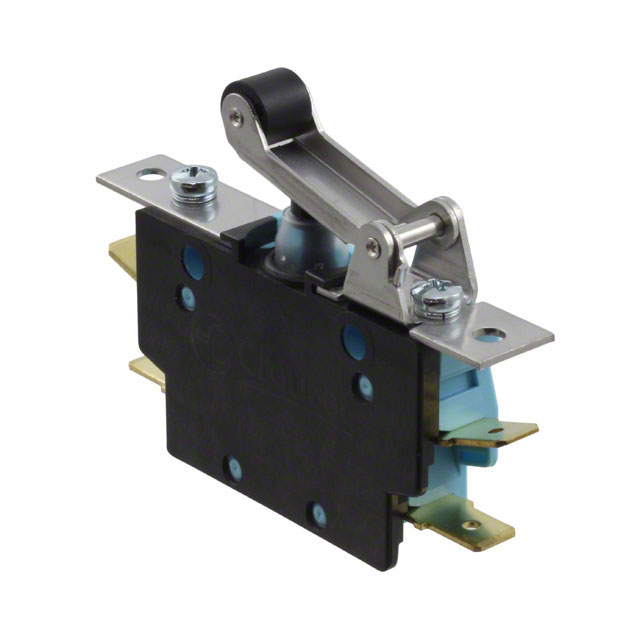

83240004

83240004 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Crouzet. Its product description is SWITCH SNAP ACTION DPST 6A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for 83240004

• Description：SWITCH SNAP ACTION DPST 6A 250V
• Series：PBX
• Mfr：Crouzet
• Package：Bulk
• Circuit：DPST-NO/NC
• Switch Function：On-Mom, Off-Mom
• Current Rating (Amps)：6A (AC), 600mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Roller
• Mounting Type：Panel Mount
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP40
• Features：-
• Operating Force：275gf
• Release Force：-
• Operating Position：0.654" (16.6mm)
• Pretravel：-
• Differential Travel：0.070" (1.8mm)
• Overtravel：-
• Operating Temperature：-50°C ~ 85°C
• Voltage Rating - DC：250 V

Limit Switches datasheet and documents for 83240004
