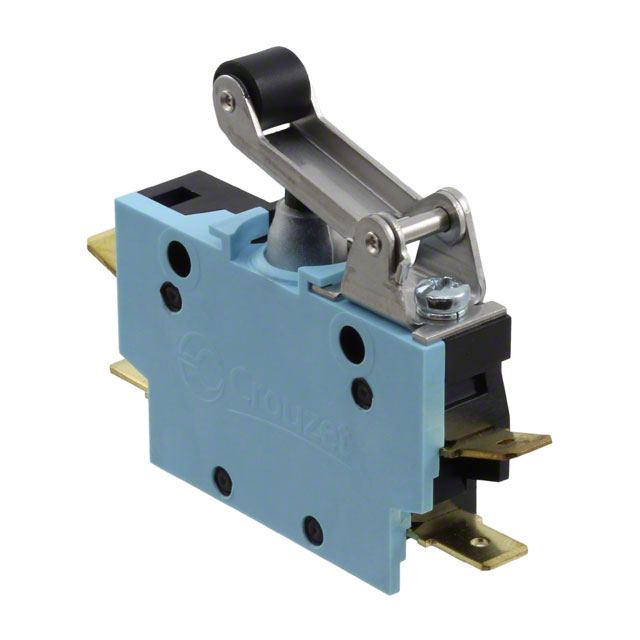

83241203

83241203 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Crouzet. Its product description is SWITCH SNAP ACTION DPST 0.1A 30V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for 83241203

• Description：SWITCH SNAP ACTION DPST 0.1A 30V
• Series：PBX
• Mfr：Crouzet
• Package：Bulk
• Circuit：DPST-NO/NC
• Switch Function：On-Mom, Off-Mom
• Current Rating (Amps)：100mA (AC/DC)
• Voltage Rating - AC：30 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.250" (6.3mm)
• Ingress Protection：IP67 - Dust Tight, Waterproof
• Features：-
• Operating Force：275gf
• Release Force：-
• Operating Position：0.654" (16.6mm)
• Pretravel：-
• Differential Travel：0.070" (1.8mm)
• Overtravel：-
• Operating Temperature：-50°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for 83241203
