833-042-523-802

Edgeboard Connectors Overview

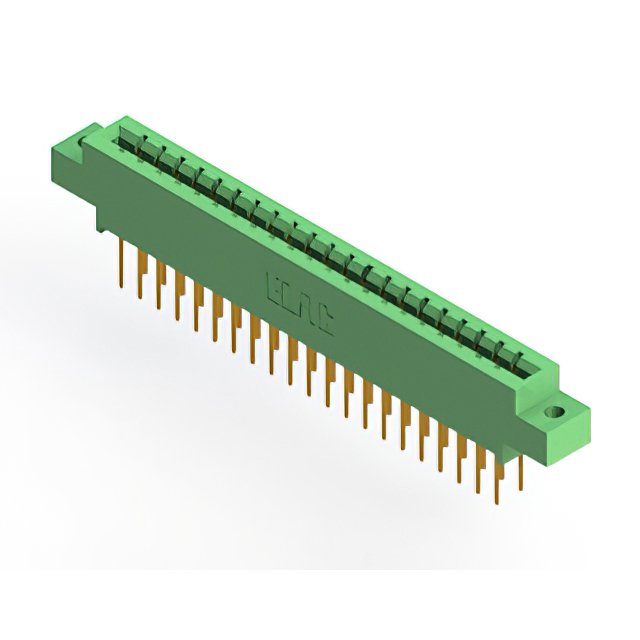

The EDAC Inc. 833-042-523-802 is a dual-edge card edge connector featuring 42 positions with a 0.156-inch (3.96mm) contact spacing and 0.200-inch (5.08mm) row spacing. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The connector utilizes gold-plated contacts and a high-profile insulator body, designed for panel mount installation.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration
• Gold-plated terminal surfaces
• High-profile insulator body design

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct pin count, spacing, and termination style. Confirm that the component meets RoHS compliance requirements for your target market. Cross-reference the part number with the latest datasheet to validate physical dimensions and material specifications before procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface is required for PCBs with a standard 0.062-inch thickness. Ensure the application environment is compatible with the connector's operating temperature range. Verify that the panel mounting style aligns with the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series, which specializes in standard card edge connectors. The series provides reliable interconnect solutions for various industrial and specialized applications, including medical and agricultural technologies, emphasizing durability and precise alignment.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult the manufacturer's official cross-reference guide or datasheet for verified alternative components.
