Edgeboard Connectors Overview

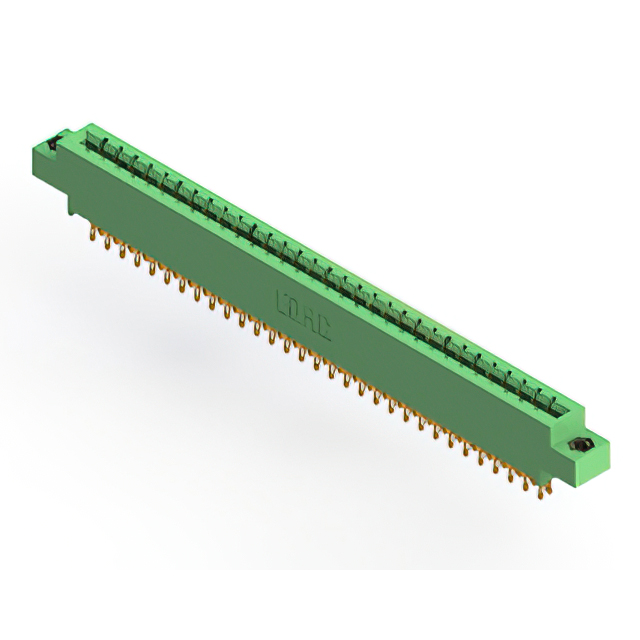

The EDAC Inc. 833-062-555-808 is a standard card edge connector from the 833 series, designed for straddle mount installation with a straight orientation. It features 62 positions and a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts with solder lug termination. It accommodates a board thickness of 1.57 mm and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable signal transmission
• Gold-plated copper alloy contacts ensure corrosion resistance
• Straddle mount design provides secure PCB attachment
• Thermoplastic polyester housing offers thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment interface modules
• Medical device internal circuit connections
• Energy sector electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and mounting style compatibility. Ensure the target PCB thickness aligns with the specified 1.57 mm requirement. Confirm RoHS compliance status through the latest component documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 62 positions is required. Verify that the application environment supports the -40°C to 125°C operating temperature range. Ensure the PCB layout matches the 3.96 mm pitch and straddle mount footprint. Confirm insulation resistance specifications meet system requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and termination options. The 833 series is characterized by its use of thermoplastic insulators and gold-plated contacts, suitable for general-purpose industrial and commercial applications requiring durable card-to-board connections.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC 833-062-555-812 for similar specifications. Verify mechanical dimensions and electrical ratings match exactly. Check for any differences in contact material or plating thickness that may affect long-term reliability in the specific application.
