837-017-540-604

$26.97

Description：CONN EDGE SGL FMALE 17POS 0.156
Series：837
Mfr：EDAC Inc.
Package：Box

SKU:dde663dcc141 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

837-017-540-604 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 17POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 837-017-540-604

Description：CONN EDGE SGL FMALE 17POS 0.156
Series：837
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：17
Number of Positions：17
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 837-017-540-604

837-017-540-604

Edgeboard Connectors Overview

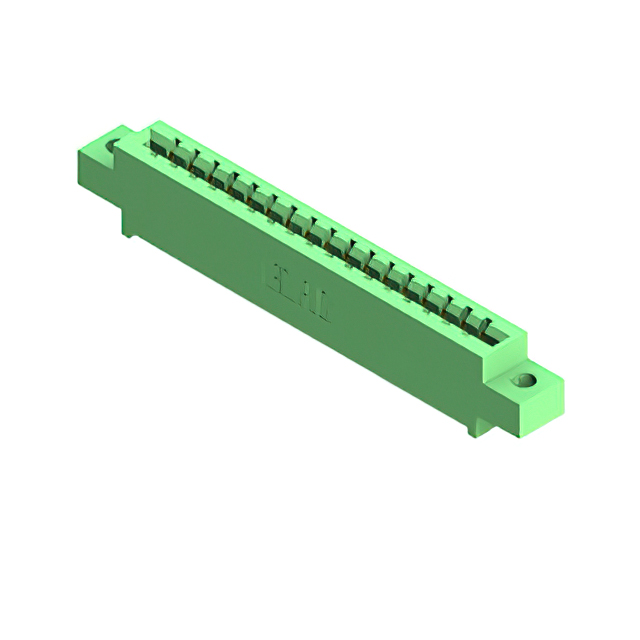

The EDAC Inc. 837-017-540-604 is a single-edge female card edge connector with 17 positions and a 0.156-inch (3.96mm) pitch. It features wire wrap termination, copper alloy contacts with gold plating, and a green DAP insulator. Designed for through-hole mounting, it supports PCB thicknesses of 0.054 to 0.070 inches. The component operates within a temperature range of -40°C to 125°C and includes flange features such as top mount opening and unthreaded design.

Edgeboard Connectors Feature Summary

Utilizes a cantilever contact type for reliable signal transmission
Features a top mount opening and unthreaded flange design
Constructed with a green DAP insulator material

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Automotive electronics

Edgeboard Connectors Procurement Notes

Verify the specific pin count and termination style against project requirements before procurement. Confirm that the supplier provides original manufacturer documentation to ensure authenticity. Check compliance with RoHS3 standards if environmental regulations apply to the assembly. Ensure the receiving facility has appropriate handling procedures for wire wrap connectors.

Edgeboard Connectors Selection Notes

Select this model when a 17-position single-row interface is required. The 0.156-inch pitch accommodates standard board layouts. Verify compatibility with the target PCB thickness range of 0.054 to 0.070 inches. Consider the operating temperature range for high-heat environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 837 series of high-temperature card edge connectors. The series is designed for robust performance in demanding applications. The part number indicates specific configuration details including position count and termination method.
