837-032-560-804

Edgeboard Connectors Overview

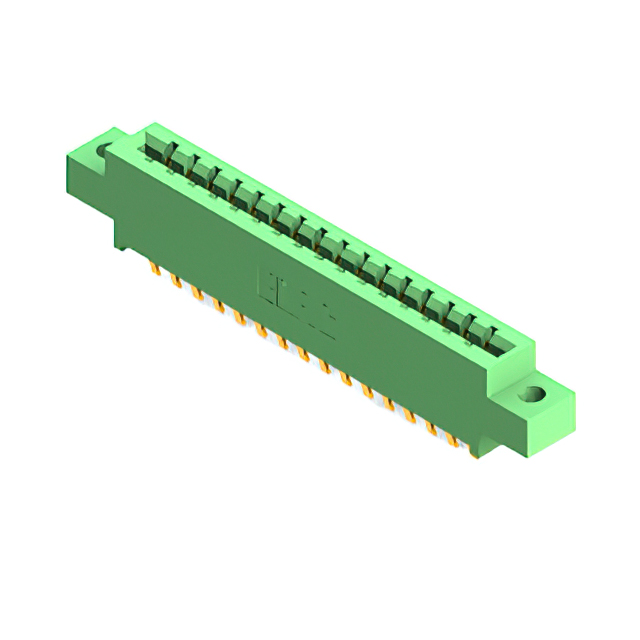

The EDAC Inc. 837-032-560-804 is a standard card edge connector from the 837 High Temp series, designed for dual-edge board insertion. It features 32 positions with a 0.156-inch (3.96mm) contact spacing and utilizes gold-plated copper alloy contacts. The unit employs a double-row configuration with PC tail termination for through-hole mounting. Constructed with green diallyl phthalate (DAP) insulation, it supports PCB thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodates both sides of the circuit board for enhanced signal routing.
• High-temperature DAP insulator material ensures stability in demanding thermal environments.
• Gold-plated suspension-type contacts provide reliable electrical connection and corrosion resistance.

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Telecommunications infrastructure equipment
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes against official EDAC documentation to ensure correct termination style and mounting configuration. Confirm that the specific ordering code matches the required dual-edge specification and contact spacing. Cross-reference the manufacturer's latest datasheet to validate current RoHS compliance status and availability before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface is required for 32-position signal transmission. Ensure the target PCB thickness falls within the specified 0.054 to 0.070 inch range for proper engagement. Verify that the application environment remains within the -40°C to 125°C operational limits defined by the DAP insulator material properties.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 837 High Temp series, which offers various contact terminations and mounting options. The series is characterized by its robust construction and suitability for harsh environments. This specific model provides a dual-edge solution, distinguishing it from single-edge variants within the same product family.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 837 Series Ordering Guide for verified substitute part numbers. Direct replacements must maintain identical pin count, spacing, and termination type to ensure mechanical compatibility.
