842-014-524-112

Edgeboard Connectors Overview

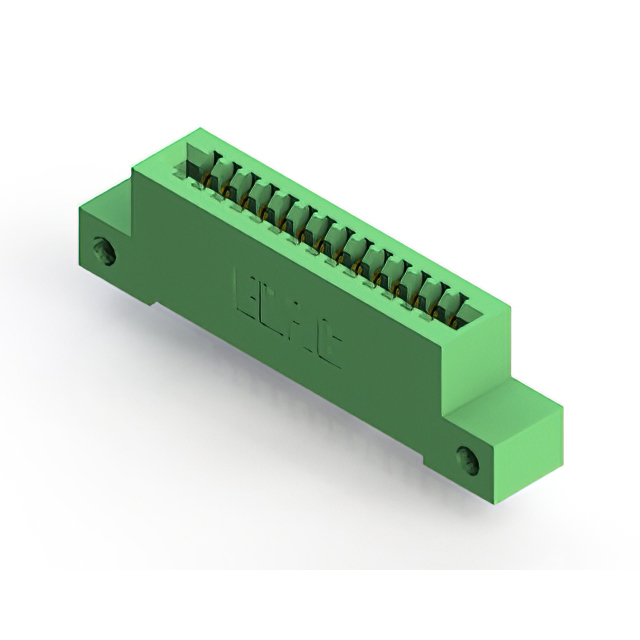

The EDAC Inc. 842-014-524-112 is a high-temperature standard card edge connector receptacle from the 842/892 series. It features 14 positions in a single row with a 0.100 inch (2.54 mm) pitch. Designed for vertical through-hole mounting, it utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) housing. The component supports a maximum operating temperature of +125°C and includes strain relief capabilities.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Strain relief design provides mechanical stability for connected circuit boards

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating, housing color, and termination style match project requirements. Confirm RoHS compliance status via the official datasheet before integration. Ensure the selected variant aligns with the required board thickness and mounting orientation specifications.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge connector with high-temperature capability is required. The 0.100-inch pitch accommodates standard PCB layouts. Verify that the DAP housing material meets environmental constraints and that the through-hole termination method fits the manufacturing process.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842/892 series of high-temperature card edge connectors. The series is engineered for durability in harsh conditions, offering robust performance across various industrial sectors. The 842 designation specifically identifies the receptacle configuration within the broader product family.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Cross-reference pin count, pitch, and mounting style to ensure functional compatibility with existing designs.
