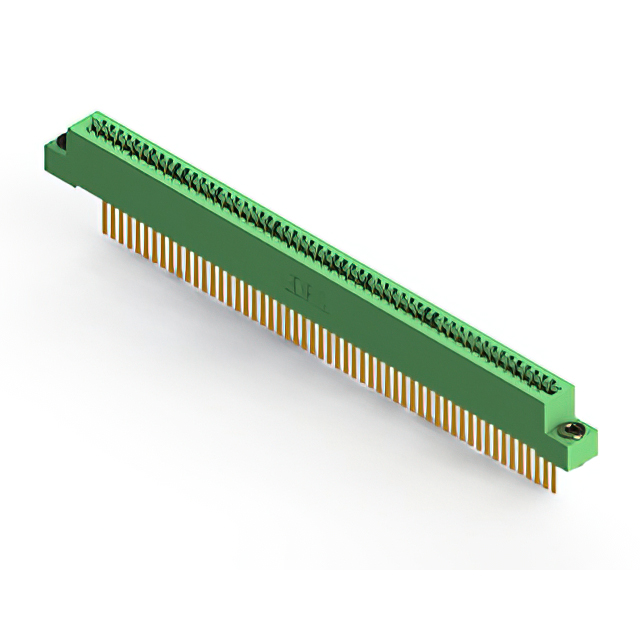

842-055-544-103

$123.70

Description：CONN EDGE SINGLE FML 55POS 0.100
Series：842
Mfr：EDAC Inc.
Package：Box

SKU:85ff4b231b28 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

842-055-544-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 55POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 842-055-544-103

Description：CONN EDGE SINGLE FML 55POS 0.100
Series：842
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：55
Number of Positions：55
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 842-055-544-103

842-055-544-103

Edgeboard Connectors Overview

The EDAC Inc. part number 842-055-544-103 is a standard card edge connector receptacle designed for through-hole mounting at a right angle. It features 55 positions with a pitch of 2.54 mm (0.100 inches) and supports a board thickness of 1.57 mm. The contacts are gold-plated, and the housing is green.

Edgeboard Connectors Feature Summary

Right-angle through-hole mounting configuration
Gold-plated contact surfaces for reliable signal transmission
Single-edge card edge design

Edgeboard Connectors Applications

Medical interconnect solutions
Agricultural technology equipment
Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure compatibility with required board thicknesses and environmental ratings. Confirm that the gold plating specification meets the intended application's conductivity requirements. Cross-reference the 55-position count with the target PCB layout dimensions to prevent mechanical interference during assembly.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, single-edge connection is required for boards up to 1.57 mm thick. The 2.54 mm pitch aligns with standard industry spacing. Ensure the application environment does not exceed the connector's thermal limits. Verify that the green housing material is suitable for the operating temperature range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 842 series of standard card edge connectors. This series provides reliable interconnect solutions for various industries, including medical and agricultural technology. The 842 series is known for its durability and consistent performance in demanding environments.
