845-017-558-408

Edgeboard Connectors Overview

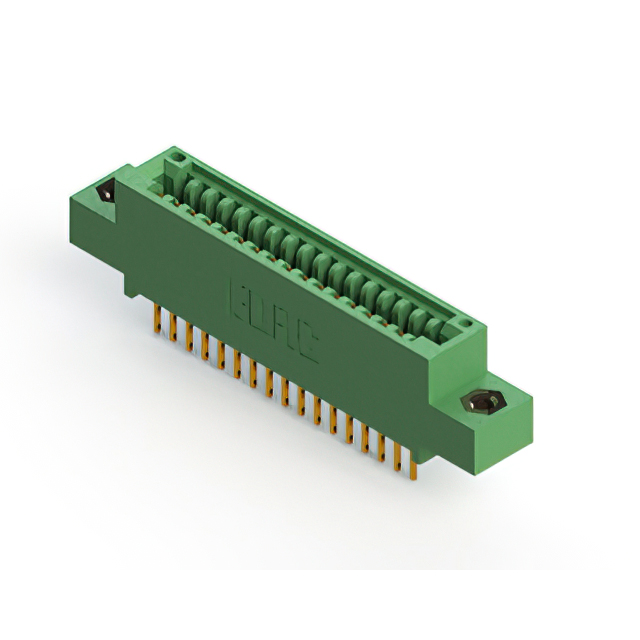

The EDAC Inc. 845-017-558-408 is a single-row card edge connector from the 845 High Temp series, designed for high-temperature environments. It features 17 positions with a 0.100 inch (2.54 mm) contact spacing and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The connector utilizes gold-plated copper alloy contacts and a black insulator body made of Diallyl Phthalate (DAP). It supports wire wrap termination and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Single-edge female configuration with wire wrap termination for secure board mounting

Edgeboard Connectors Applications

• Aerospace electronic systems requiring high reliability
• Military communication equipment
• Industrial control panels operating in extreme temperatures

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified independent suppliers. Confirm that the received parts match the specific 845-017-558-408 designation and exhibit no physical damage. Ensure storage conditions remain within specified limits to preserve contact integrity before installation.

Edgeboard Connectors Selection Notes

Select this model when a single-row, high-temperature card edge connector with wire wrap termination is required. It is appropriate for applications involving 0.062-inch thick PCBs where gold plating and DAP insulation are necessary for environmental stability and electrical performance.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temperature Series, which provides robust connectivity solutions for harsh environments. The series offers various position counts and termination styles, maintaining consistent material standards such as DAP insulators and gold-plated contacts across the lineup.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 845 series variants sharing identical row count, spacing, and termination type. Verify mechanical fit and electrical ratings against alternative single-row connectors before substitution.
