845-059-500-102

Edgeboard Connectors Overview

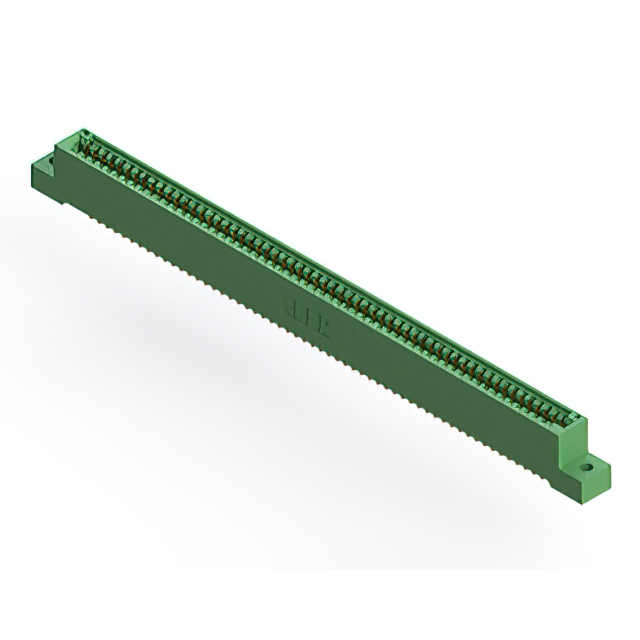

The EDAC Inc. 845-059-500-102 is a standard card edge connector from the 845 High Temp series, designed for single-edge PCB interfaces. It features a female configuration with 59 positions arranged in a single row and a 0.100-inch (2.54mm) pitch. The contacts are made of copper alloy with gold plating to ensure reliable signal transmission. Constructed with DAP insulation, this component supports through-hole termination and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction utilizing DAP insulation material for stable performance under thermal stress.
• Gold-plated copper alloy contacts provide durable electrical connectivity and corrosion resistance.
• Single-row female design accommodates standard single-edge printed circuit board configurations.

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Communication equipment interface modules
• Automotive electronics applications

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 59-position count and single-row configuration. Confirm that the supplier provides original manufacturer documentation to ensure compliance with RoHS3 standards. Check for any specific handling requirements related to the gold-plated contacts during storage and installation.

Edgeboard Connectors Selection Notes

Select this connector when a single-edge interface with 59 pins is required for high-temperature environments. Ensure the PCB thickness falls within the specified range of 0.054 to 0.070 inches. Consider the through-hole mounting style and the need for DAP insulation material for thermal stability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is characterized by its use of DAP insulation and robust contact designs suitable for demanding industrial and automotive applications where standard connectors may fail due to heat.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing PCB layouts before considering alternative models from other manufacturers.
