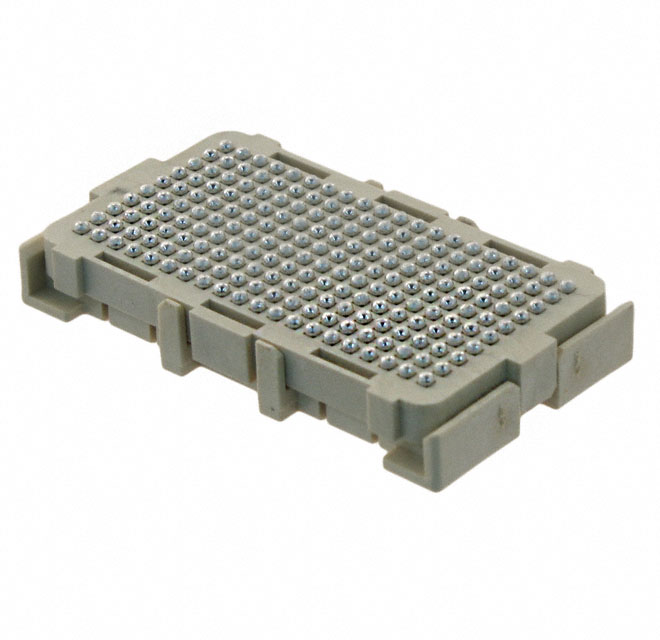

Arrays, Edge Type, Mezzanine (Board To Board) 84517-101LF product image

84517-101LF

$21.03

Description：CONN ARRAY RCPT 200POS SMD GOLD
Series：MEG-Array®, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c84ee89bf5a0 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

84517-101LF is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN ARRAY RCPT 200POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 84517-101LF

Description：CONN ARRAY RCPT 200POS SMD GOLD
Series：MEG-Array®, MezzSelect™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Array, Female Sockets
Number of Positions：200
Pitch：0.050" (1.27mm)
Number of Rows：10
Mounting Type：Surface Mount
Features：-
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Mated Stacking Heights：4mm, 10mm
Height Above Board：0.132" (3.35mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 84517-101LF

84517-101LF
