Edgeboard Connectors Overview

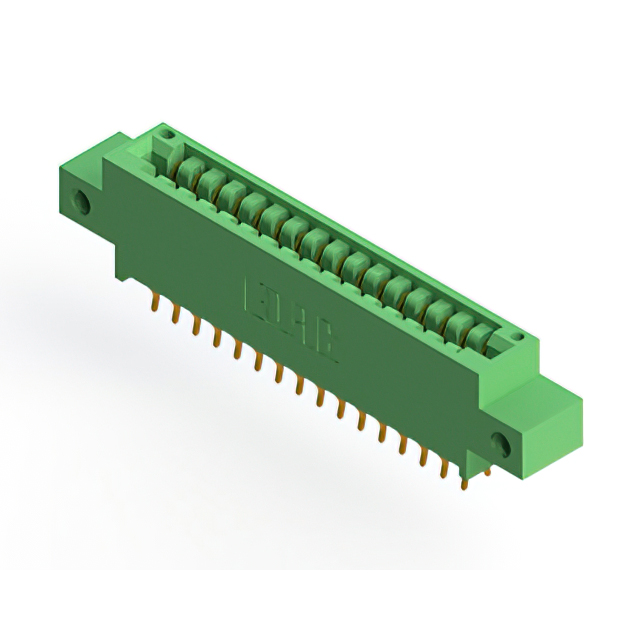

The EDAC Inc. 846-032-556-812 is a standard card edge connector from the 846 High Temp series, designed for high-temperature environments. It features a dual female configuration with 32 positions and a contact spacing of 0.125 inches (3.175 mm). The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) insulator. It supports PCB thicknesses ranging from 0.054 to 0.070 inches and employs PC pin termination for straddle mount installation.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal conditions
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Dual female design accommodates standard card edge boards
• Straddle mount style provides secure vertical board attachment

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Automotive electronics operating in elevated temperature zones
• Communication equipment with strict reliability standards
• Aerospace and defense applications

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against official EDAC documentation to confirm exact termination length and mounting variations. Ensure compatibility with target PCB thickness specifications before ordering. Confirm that the supplier provides traceable origin documents to guarantee component authenticity and prevent counterfeit risks.

Edgeboard Connectors Selection Notes

Select this model when high-temperature performance is critical for the application. Verify that the required current rating aligns with system demands. Check mechanical constraints such as available panel space and mating card dimensions. Consider environmental factors like vibration and chemical exposure when finalizing the connector choice.

Edgeboard Connectors Part Context

This component belongs to the EDAC 846 series, which specializes in high-temperature card edge connectors. The series is engineered for durability in harsh environments, offering robust electrical connections through precise contact plating and stable insulating materials. It serves as a reliable interface solution for industrial and specialized electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the EDAC 846 series for similar position counts and spacing. Verify that alternative models match the required termination type and mounting style. Consult official substitution guides to ensure functional equivalence without compromising thermal or electrical ratings.
