857-080-556-204

Edgeboard Connectors Overview

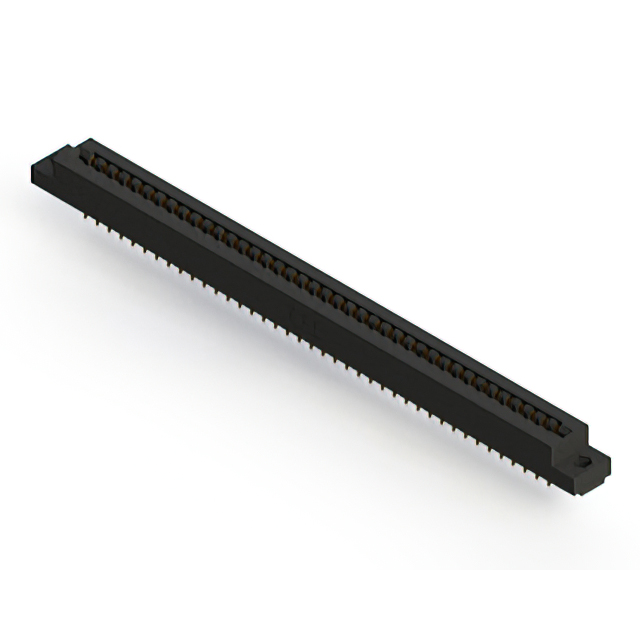

The EDAC Inc. 857-080-556-204 is a high-temperature standard card edge connector designed for robust electronic interconnections. It features 80 positions with dual female contacts, utilizing gold plating on copper alloy terminals to ensure reliable signal transmission. The component employs a 3.96 mm (0.156 inch) contact spacing and a 5.08 mm (0.200 inch) row spacing. It accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The connector utilizes a low-profile insulator body constructed from thermoplastic polyester, providing durability in demanding environments.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for elevated thermal conditions
• Dual edge female contact configuration for secure board insertion
• Gold-plated copper alloy terminals for enhanced conductivity and corrosion resistance
• Low-profile insulator body design for space-constrained applications

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Communication equipment infrastructure
• Medical device internal connections
• Energy sector instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count and termination style. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Cross-reference the RoHS compliance status with the latest regulatory documentation provided by EDAC Inc. to meet environmental standards for your region. Confirm that the dual-edge female gender matches the mating card specifications.

Edgeboard Connectors Selection Notes

Select this model when high-temperature performance is critical for the application environment. The 80-position capacity supports complex signal routing needs within a defined footprint. The 3.96 mm pitch offers a balance between density and manufacturability. Consider the panel mount or straddle mount options if mechanical stability during operation is required. Verify that the gold plating meets the specific wear requirements of the mating cycle.

Edgeboard Connectors Part Context

This component belongs to the EDAC 857 series of high-temperature card edge connectors. The series is characterized by its ability to withstand elevated operating temperatures while maintaining electrical integrity. The 857 series typically features thermoplastic polyester insulators and gold-plated contacts. This specific part number denotes an 80-position variant with dual-edge female contacts, fitting into the broader portfolio of industrial-grade interconnect solutions offered by EDAC Inc.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include the 857-080-556-203 and 857-080-556-204 variants, differing primarily in mounting hardware or specific insulation properties. Verify that any replacement maintains the 3.96 mm pitch and 1.57 mm board thickness compatibility. Consult the official EDAC cross-reference guide for approved alternate part numbers.
