892-024-560-212

Edgeboard Connectors Overview

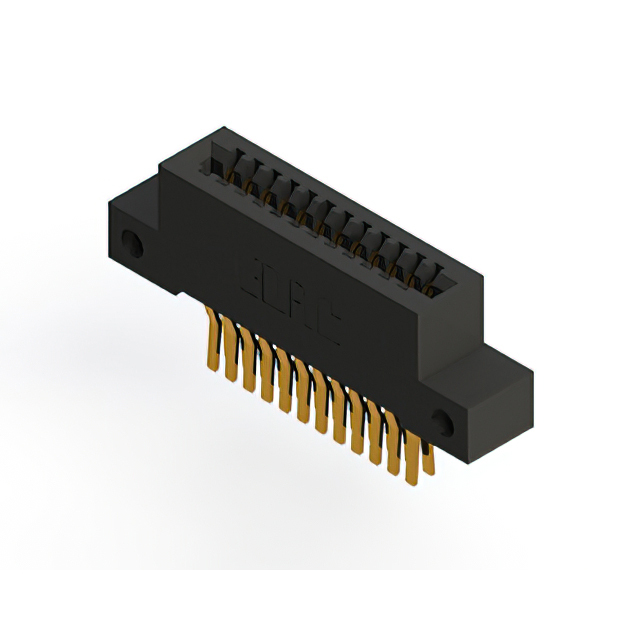

The EDAC Inc. 892-024-560-212 is a standard card edge connector from the 892 series, designed for high-temperature applications. It features a dual female configuration with 24 positions and a 0.100-inch (2.54 mm) pitch. The receptacle utilizes wire wrap termination and panel mount installation in a vertical orientation. Constructed with copper alloy contacts and a polyphenylene sulfide (PPS) housing, it supports a PCB thickness of 1.57 mm. Rated for 3 A current, it operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction utilizing polyphenylene sulfide housing material
• Dual female contact configuration with gold plating for reliable signal transmission
• Wire wrap termination method ensuring secure electrical connections
• Vertical panel mount design accommodating specific board thickness requirements

Edgeboard Connectors Applications

• Industrial control systems requiring elevated thermal stability
• Automotive electronics interfacing with printed circuit boards
• Medical equipment utilizing high-reliability interconnect solutions
• Agricultural technology hardware exposed to harsh environmental conditions

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffix digits to ensure correct pitch, position count, and termination style. Confirm that the required PCB thickness matches the specified 1.57 mm dimension. Check RoHS compliance status and moisture sensitivity level prior to ordering. Ensure the supplier provides official documentation matching the manufacturer specifications.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel mount card edge connector is required for high-temperature environments. The 2.54 mm pitch suits general-purpose digital and power interfaces. Verify compatibility with existing wire wrap tooling and available panel space. Consider the 3 A current rating against system load requirements before finalizing the selection.

Edgeboard Connectors Part Context

This component belongs to the EDAC 892 series of standard card edge connectors. The series is engineered for durability in demanding sectors such as medical, agricultural, and industrial markets. The 892 designation indicates specific thermal and mechanical characteristics distinct from other EDAC product lines.

Edgeboard Connectors Replacement Considerations

Cross-reference alternative part numbers within the EDAC 892 series for variations in position count or termination type. Verify that any substitute maintains identical pitch, mounting style, and thermal ratings.
