895-009-559-604

Edgeboard Connectors Overview

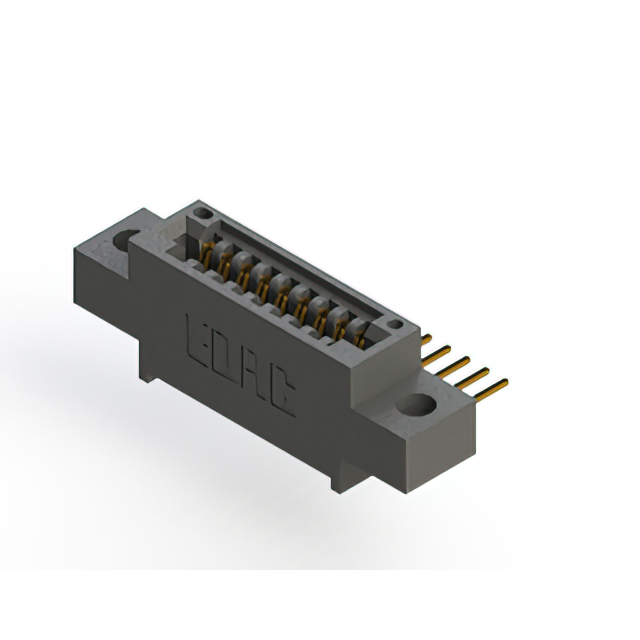

The EDAC Inc. 895-009-559-604 is a single-row female card edge connector designed for through-hole mounting. It features 9 positions with a 0.100 inch (2.54mm) pitch. The contacts are made of copper alloy with gold plating, housed in black polyphenylene sulfide (PPS) insulation. It supports board thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Single-row female configuration for non-specified edge cards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Polyphenylene sulfide insulation provides high-temperature stability

Edgeboard Connectors Applications

• General electronic interconnect systems
• Industrial control modules
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 895 Series Ordering Guide to confirm exact contact termination, flange features, and insulation material properties. Ensure compatibility with target PCB panel mount requirements and verify RoHS3 compliance status prior to integration into final assemblies.

Edgeboard Connectors Selection Notes

Select this component when a single-row female interface is required for thin profile applications. Confirm that the target circuit board thickness falls within the specified 0.054 to 0.070 inch range. Evaluate thermal management needs against the 125°C maximum operating limit and ensure sufficient clearance for the top-mount opening flange design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various row counts, pitches, and mounting options. The 895-009 variant specifically addresses low-pin-count single-row requirements, providing a compact solution compared to multi-row or higher-density alternatives within the same product family.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with identical electrical ratings but different mechanical configurations. Verify pin count and pitch compatibility before considering cross-brand alternatives.
