895-025-540-101

Edgeboard Connectors Overview

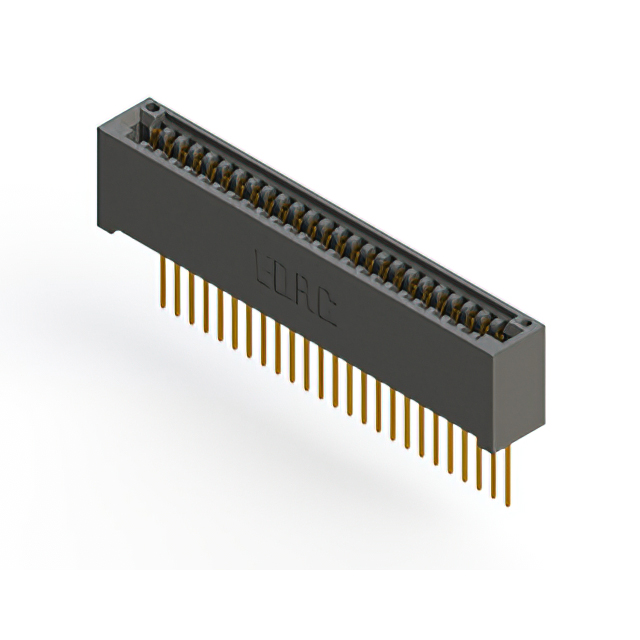

The EDAC Inc. 895-025-540-101 is a standard card edge connector featuring 25 positions with a .100" (2.54mm) pitch and .200" (5.08mm) row spacing. Designed for single-edge mating, it accepts printed circuit boards with a nominal thickness of .062" (1.57mm). The component utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide insulator body. It employs a wire wrap termination style for secure electrical connections.

Edgeboard Connectors Feature Summary

• Accepts .062" (1.57mm) nominal thickness PCBs
• High profile insulator body construction
• Gold-plated copper alloy contact material

Edgeboard Connectors Applications

• Single-row card edge interconnection systems
• Panel mount electronic assemblies
• Vertical board-to-board connectivity

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact configuration, including row count and termination type. Ensure compatibility with the target PCB thickness of .062 inches. Confirm that the wire wrap termination method aligns with the assembly process requirements before procurement.

Edgeboard Connectors Selection Notes

Select this model when a single-row, vertical card edge connector is required. The .100 inch pitch suits standard digital logic applications. Verify that the wire wrap termination is feasible for the production environment compared to solder-based alternatives.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and configurations. The 895-025-540-101 specifically denotes a 25-position single-row variant within this established product line.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 895-025-540-512 or 895-029-541-101 for alternative positions or row configurations within the same series. Verify mechanical dimensions and electrical ratings match before substitution.
