895-028-542-603

Edgeboard Connectors Overview

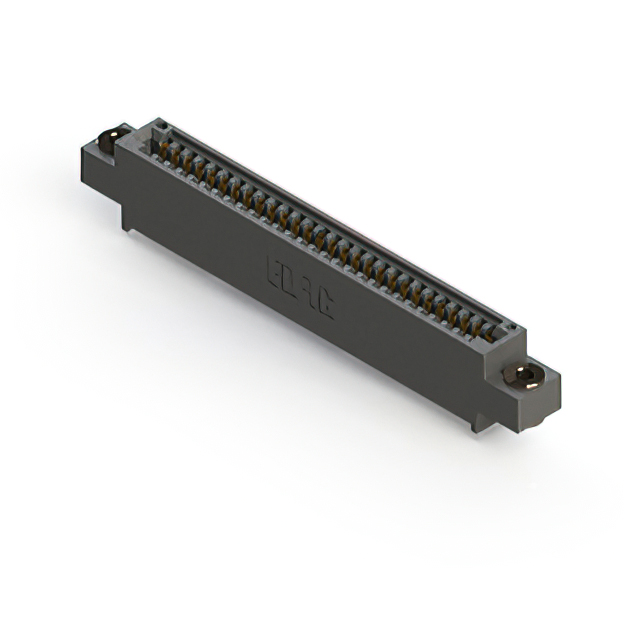

The EDAC Inc. 895-028-542-603 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. It features 28 positions arranged in a single row with a 0.100-inch (2.54mm) pitch. The receptacle utilizes female contacts made of copper alloy with gold plating, ensuring low contact resistance and durability. Constructed with a black polyphenylene sulfide (PPS) insulator, it supports panel mount installation at a vertical angle. The component is rated for a maximum operating temperature of 125°C and a minimum of -40°C, suitable for diverse industrial environments.

Edgeboard Connectors Feature Summary

• Single-row female configuration with gold-plated copper alloy contacts
• Vertical panel mount design for space-efficient integration
• Polyphenylene sulfide insulation for thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Consumer electronics assembly boards
• Medical device circuitry connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and material specifications. Ensure compatibility with target PCB thickness and mating card dimensions before finalizing orders. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this model when a single-row, vertical connection is required for 28-position interfaces. Confirm that the 0.100-inch pitch aligns with the board layout constraints. Verify that the PPS housing meets the thermal requirements of the application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting styles to support different board densities. The 895-028 variant specifically addresses applications needing a compact, single-sided interface solution.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 895-028-542-803 and 895-028-500-502. Verify pin count, pitch, and mounting orientation before substitution.
